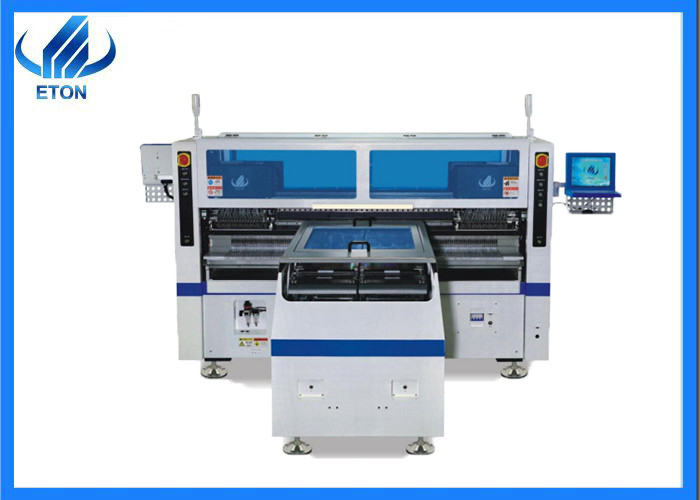

SMT placement machine for LED flexible strip light
Main feature
1,Double rail＋four group of placement machine mount heads,17 nozzles for each mounting part,part A or part B can be mounted separately or synchronously.
2,Adjust the conveying platform according to various roll to roll strip,range 250mm±10mm,max length range is 1m per cycle.
3,The distance of feeder station can be flexibly adjusted to achieve group to pick and group to pace,so as to realize the function of two times pick and once place.
4,The range of feeder station is double of placement head,can produce four kinds of materials at same time.
5,Intelligent electric feeder,supporting high speed placement machine series.
6,Flight recognition camera,no pause to detect the presence and absence of component,component adsorption state,prevent placement errors.
7,The clamping rod is driven by the air cylinder to correct the material taken by mounting head.
8,Compliant with CE.
Parameter
| Product name |
placement machine |
| Model |
T9-2S |
| Length(mm) |
3454 |
| Width(mm) |
3035 |
| Height(mm) |
1777 |
| Total weight(kg) |
3100 |
| Mounting speed |
500000CPH |
| Power |
380AC 50HZ |
| Power consumption |
9.6 KW |
| Operating environment |
23℃±3℃ |
| Gas consumption |
0.4-0.6mpa(4-6kgf/cm²)150N/min |
| X,Y Axis drive way |
High-end magnetic linear motor and servo motor |
Main process flow of SMT
What are the elements of the SMT placement machine placing process?
Printing solder paste: Use wire mesh to leak solder paste onto PCB pads in preparation for component welding. The equipment required for this process is a solder paste printing machine, which is divided into fully automatic and semi-automatic.
Mounting: The equipment required for accurately installing surface mounted components to their corresponding fixed positions on the PCB is a placement machine.
Furnace welding:The purpose is to melt the solder paste so that the components on its surface can be combined with the PCB board. The required equipment is a reflow oven.
