| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Weight: | 1700kg | Power Supply: | 380AC 50HZ |
| Dimension: | 2700*2300*1550mm | Speed: | 250000CHP |
| Feeder: | 68pcs | Program Method: | Online And Offline Ways |
| Condition: | New | Product Name: | LED Pick And Place Machine |
| High Light: | Highspeed LED Pick And Place Machine,Pick And Place Machine 50HZ,dual arm LED Pick And Place Machine |
||
Product introduce description

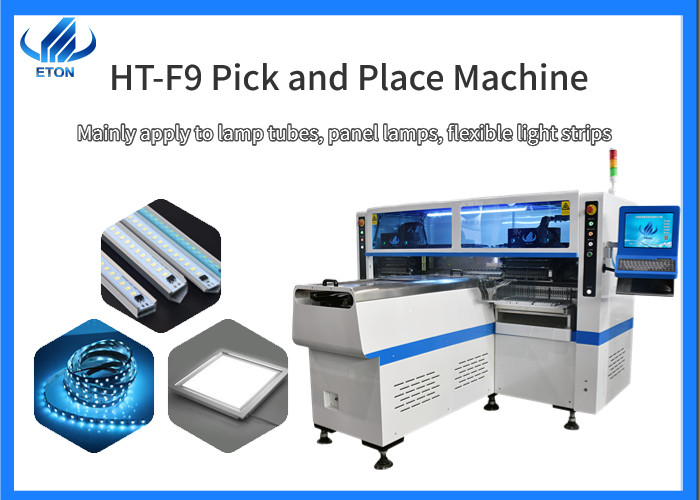

ETON HT-F9 is dual arm magnetic linear LED high speed pick and place machine, producing 4 types materials at the same time,optimum capacity reach 200000 CPH. Mainly produces linear products such as lamp tubes, lamp strips, panel lamps, display screens, etc.
Features
| Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5m,1m LED flexible strip. Producing with producing 4 types materials at the same time with high capacity |
| The pick and place machine adopts ETON exclusive patent technology:group to take and group to mount, achieve ultra high speed production. |
| Available for board with any proportion of LED chip and resistor. |
Parameter
| Product name | pick and place machine |
| Model | HT-F9 |

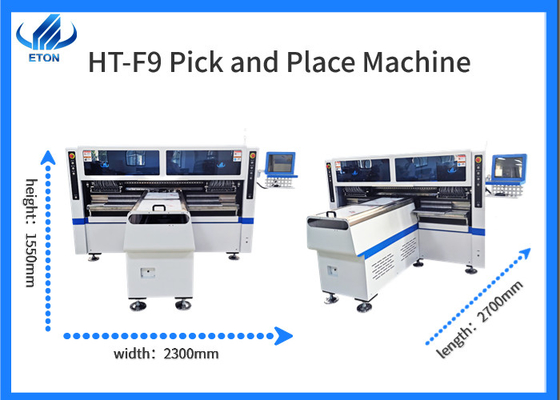

| Length(mm) | 2700 |
| Width(mm) | 2300 |
| Height(mm) | 1550 |
| Total weight(kg) | 1700 |
| Mounting speed | 250000CPH |
| Power | 380AC 50HZ |
| Power consumption | 6 KW |
| Operating environment | 23℃±3℃ |
| Gas consumption | 0.4-0.6mpa(4-6kgf/cm²)150N/min |
| X,Y Axis drive way | High-end magnetic linear motor and servo motor |
Detailed description
1,Linear magnetic levitation motor
The pick and place machine use linear magnetic levitation motor, the stator itself is a permanent magnet, and the interaction between the moving stator and the magnetic pole causes the mounting head to move back and forth through external electrification.
2,Electric feeder with double motor
The motor controls the winding of the belt, and feeder carries out the feeding. Independent control, more accurate, reducing failure rate.
3,Dual arm four module
Pick and place machine with 17 nozzles for each mounting part,part A/B/C/D can be mounted separately or synchronously.
Our Service
Global Service Office: India·Turkey·Vietnam·Egypt·Pakistan
Professional solutions: Provide professional SMT Full line solutions
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
FAQ
1. do you provide engineers service?
Yes, of course. We have local engineers and office in India, Egypt etc, Who can provide free training, debug and installation door to door timely.
2. How long is the warranty period ?
Provide one year warranty period shall be replaced free of charge when All parts damaged
3. Is the cost of feeders being included the machine cost?
Feeders need to be purchased separately according to the size of the components, which is not included in the price of the machine.
4. Do you provide personal customization?
Yes, of course. contact the sales specialist to customize the equipment for you.
5. How about the software ?
Our software is R&D independently by ourselves.
