Product description

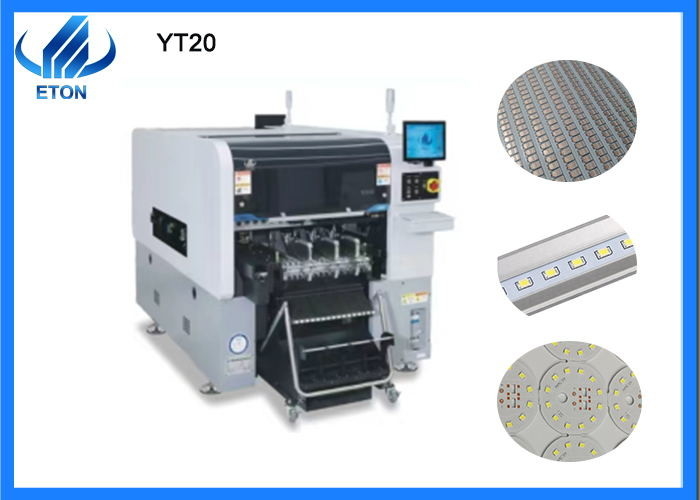

Pick and place machineYT20 is one of the newly launched YT series products from ETON. The dual-module pick and place machine can produce two identical PCB boards at the same time, improving production efficiency. Under optimal conditions, the production capacity can reach 80000CPH, and the precision is very high, and the minimum mounted components can reach 0201.
Machine highlight
High speed multi modular head:adopt high -speed multi modular head,apply to ultra small chip 0201-40*40mm large chip,wider component range.
Brand new flight vision camera:improve recognition performance,size up to 40mm*40mm,apply to BGA or CSP etc.
Vacuum sensing device:each pick and place machine head with independent detection function,which improves the stability of the equipment and the reliability of the product.
Ultra high speed capability:adopt high end magnetic linear motor,servo system and multi function modular head,the capability increased by 25% compared with traditional pick and place machine,optimum placement speed reach 80000CPH.
Parameter
| Product name |
pick and place machine |
| Product model |
YT20 |
| Max PCB size |
Single PCB:500*450mm
Double PCB:500*300mm
|
| Min PCB size |
50*50mm |
| PCB thickness |
0.5-4.5mm |
| Rail |
2 rail,2 gantries ,rail 1,4 are fixed rail |
| No.of camera |
6 sets |
|
Mounting height
|
≤15mm |
| Mounting speed |
80000CPH |
| No.of head |
Double side:20 PCS,single side:10 PCS |
| No.of feeder station |
Double side docking cart slot 32pcs, tape reel packages: 64pcs；single side docking cart slot 16 PCS, tape reel packages:32pcs,freely Switching between docking cart and IC tray feeder(IC tray feeder:option) |
Application
Pick and place machineYT20 can be applied to components as small as 0201 and as large as 40 * 40mm, and can also install large IC components such as BGA, CSP, and QFP. The finished product is not only LED lamps, but also more complex PCBA boards, such as driver boards, circuit boards, etc
Our Service
Global Service Office: India·Turkey·Vietnam·Egypt·Pakistan
Professional solutions: Provide professional SMT Full line solutions
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
