68 Feeders SMT Pick And Place Machine 250000CPH For LED Bulb Light

68 Feeders SMT Pick And Place Machine 250000CPH For LED Bulb Light
68 Feeders SMT Pick And Place Machine 250000CPH For LED Bulb Light 68 Feeders SMT Pick And Place Machine 250000CPH For LED Bulb Light

Large Image :  68 Feeders SMT Pick And Place Machine 250000CPH For LED Bulb Light

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC CE SIRA
Model Number: HT-F9
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum package,wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description

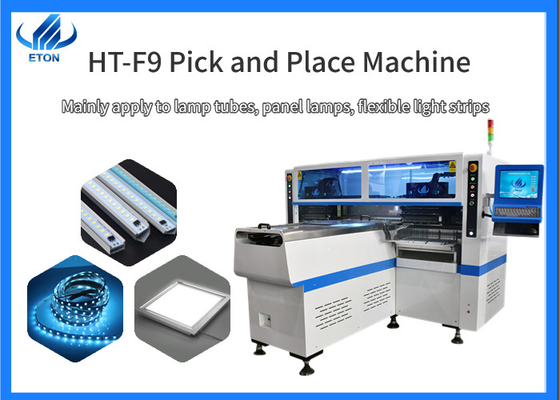

Warranty: 1 Year Application: Panel Light,strip Light,tube
Dimension: 2700*2300*1550mm Weight: 1700KG
Feeders: 68PCS Condition: 100% Original
Mounting Speed: 250000CPH Power Supply: 380AC 50HZ
Highlight:

68 Feeders SMT Pick And Place Machine

,

Dual arm led bulb making machine

,

250000 CPH led bulb making machine

SMT LED machine rigid PCB strip light high speed



68 Feeders SMT Pick And Place Machine 250000CPH For LED Bulb Light 0



THREE HIGH:

  • High-Productivity:
  • Producing with 4 types of materials at the same time
  • Capacity reach 250000 CPH
  • High-intelligence:
  • Dual arm four module,17 nozzles for each mounting part,part A/B/C/D can be mounted separately or synchronously.
  • High-precision :
  • Repeat Mounting precision :±0.02 mm (Repeat precision)







Exclusive patented technology



  • R&D Independently Electronic control
  • R&D Independently software
  • R&D Independently Motion control card module 1 set
  • R&D Independently Group to take and group to mount







The details

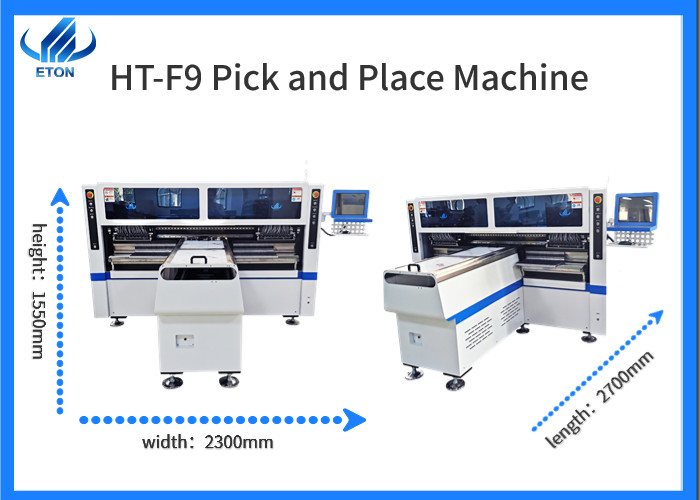

About our machine outline dimension



length 2700mm
Width 2300mm
Height 1550mm
Total weight 1700kg



Our machine of HT-F9 is

group picking and group placing



Size

Max size: 1200mm*330mm

Min size: 100*100mmh
Thickness 0.5--5mm
Mounting Clamping Adjustable pressure pneumatic
Mounting height ≤5mm



About the System



O.S.
System Windows 7
Display Touch screen monitor
Feeding system
No. Of feeders station 68 PCS
No. of head 68 PCS
Feeding way Electric feeder with double motor



About Transmission



Conveyor transmission Max length:1200mm
Transmission speed >500 mm/sec
Transmission direction

Single

(left→right/right→left)
Transmission mode Online drive
Position way Optical





Other



Operating environment 23℃±3℃
Air supply 0.4-0.6mpa (4-6kgf/cm²)150N/min





Packaging and transportation

  • Packaging method:
  • Standard production packaging or customized packaging
  • Port of shipment:Shenzhen
  • Production period:
  • 30 days (≤50days) If it is more than 50, it will be discussed again

68 Feeders SMT Pick And Place Machine 250000CPH For LED Bulb Light 1







AFTER SALES SERVICE



Global Service Office: India ·Turkey · Vietnam ·Egypt · Pakistan

  • Professional solutions :

Provide professional SMT Full line solutions.

  • Free Warranty:

One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge.

  • Free installation-On-site free installation to ensure smooth production.
  • Free Technical Training: Professional training of operating and maintenance.
  • Free Technical Support: 7 *24 technical online support.
  • Free Software Upgrade: Offer free software upgrade whole lifetime





OUR COMPANY



ETON is a manufacturing and process solution provider focusing on R&D,production,sales and service of SMT high-speed pick and place machine.ETON specializing in this industry for 12 years.



We enjoy many honors





ETON is the leading manufacturer of global optoelectronic high speed pick and place machine , the products are exported to more than 20 countries and regions , including South Korea , India , Vietnam , Tunisia , Egypt , Turkey , Russia , Brazil etc . ETON obtains a number of intellectual property technologies , including 9 invention patents ,112 practical patents ,12 software copyrights . ETON is rated as " Shenzhen high - tech enterprise "" Guangdong high - tech enterprise "" China high - tech enterprise "" Shenzhen TOP Brand ""2015 LED Technology Innovation Award " “The 4th China LED First Innovation Award" “Industry Special Contribution Award "etc .

68 Feeders SMT Pick And Place Machine 250000CPH For LED Bulb Light 2
