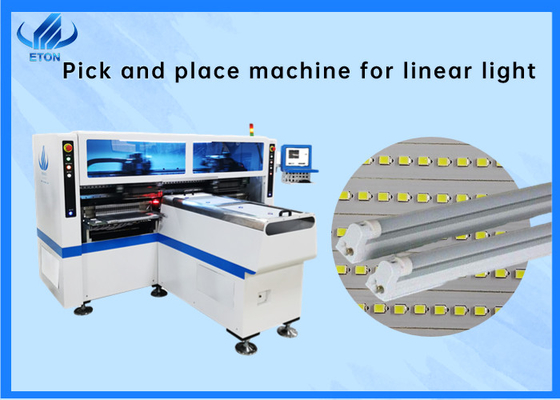

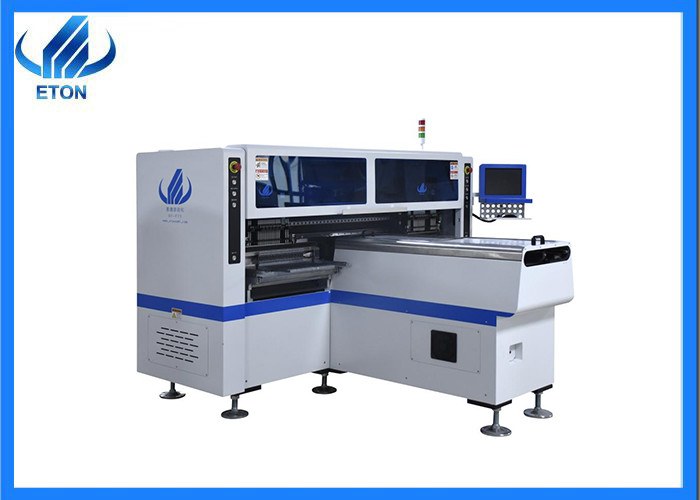

SMT LED pick and place machine for linear light
Feature
- The pick and place machine equipped two mounting modules,17 nozzles for each mounting part,part A/B/C/D can be mounted separately or synchronously.
- Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5m,1m LED flexible strip. Producing with producing 4 types materials at the same time with high capacity,available for board with any proportion of LED chip and resistor.
- Exclusive patent technology:group to take and group to mount.
Main parameter
| Product name |
pick and place machine |
| Model |
HT-F7S |
| Length(mm) |
2700 |
| Width(mm) |
2300 |
| Height(mm) |
1550 |
| Total weight(kg) |
1700 |
| Mounting speed |
150000-180000CPH |
| Power |
380AC 50HZ |
| Power consumption |
6 KW |
| Operating environment |
23℃±3℃ |
| Gas consumption |
0.4-0.6mpa(4-6kgf/cm²)150N/min |
| X,Y Axis drive way |
High-end magnetic linear motor and servo motor |
Vision System
- The visual recognition system of pick and place machine HT-F7S includes five digital cameras from top domestic brands. One camera is responsible for marking correction, two cameras are responsible for nozzle debugging, and two cameras are responsible for feeder debugging. The feeder debugging camera adjusts the feeder spacing by photographing the center scale line of the feeder seat.
Feeding system
- The pick and place machine HT-F7S model has 64 feeders and 34 suction nozzles. Because it is double mounting modules, one module controls 17 suction nozzles. Linear motor, servo motor and angle motor are used together, with higher precision and longer service life.
- The feeding mode is electronic feeder driven by two motors, which is also one of the exclusive patented technologies of our company.
