Details
- Mark recognition : High - precision Mark recognition system , adopt 3- color illumination recognition , apply to any shape Mark and LENS ( Blu - ray scan ), wider range of applications .
- Fixed flight vision camera : High - speed flight vision camera , quickly captures multiple head images at once , perform visual calibration of image position , alignment correction , adjustable light source brightness .
- Double side docking cart slot 32PCS, tape reel packages :64PCS( single side docking cart slot 16PCS, tape reel packages :32PCS), freely switching
- Between docking cart and IC tray feeder ( IC tray feeder : Option )
- Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy

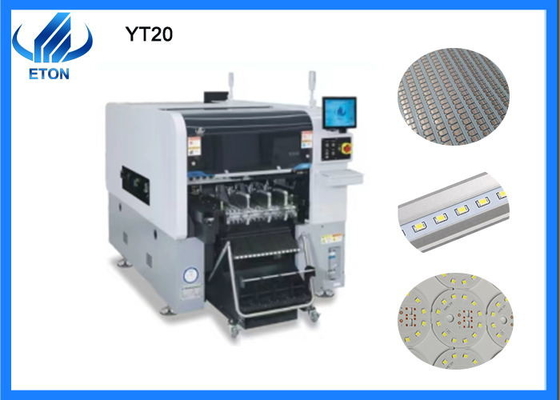

Product Parameters
| Model |
YT20 |
| Length |
2788mm |
| Width |
1686mm |
| Height |
1375mm |
| Total Weight |
1700kg |
| PCB size(L* W) |
Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB)
Min size:50mm*50mm
|
| PCB Thickness |
0.5-4.5mm |
| PCB Clamping |
Cylinder clamping, track width adjustable |
| Mounting mode |
Group picking and separately placing,separately picking and separately placing |
| System |
Windows 7 |
| Software |
R&D Independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, mouse |
| No.of camera |
4 sets Digital camera |
| Components |
Min 0201~40*40mm Tape reel packages and IC tray feeder etc. |
| No.of feeders station |
Double side docking cart slot 32PCS,tape reel packages:64PCS |
| No.of nozzles |
Double side:20pcs(single side:10pcs) |

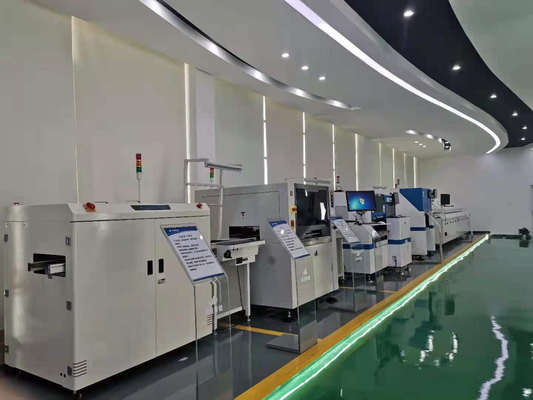

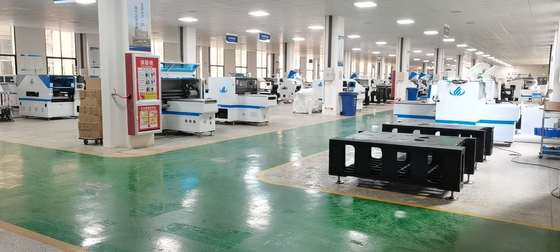

Company
Shenzhen Eton Automation Equipment co., LTD.is a professional manufacturer of pick and place machine.Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine.Eton also has its own industrial park in Jiangxi. We are a powerful company with our own R & D production and sales.And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. what can you buy from us?
SMT Pick And Place Machine
5. why should you buy from us not from other suppliers?
Our advantage lies in: 1. Top quality: We have more than 10 years experience in SMT,we have the goods with best quality,just tell me what you need,then will do the best for you 2. Lowest price: give yo lowest price for long time cooperation
4. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
