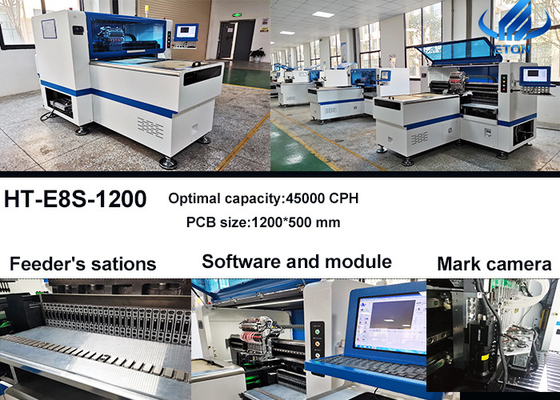

Max PCB 1.2M SMT Pick Place Machine LED Lens Full Line Solution

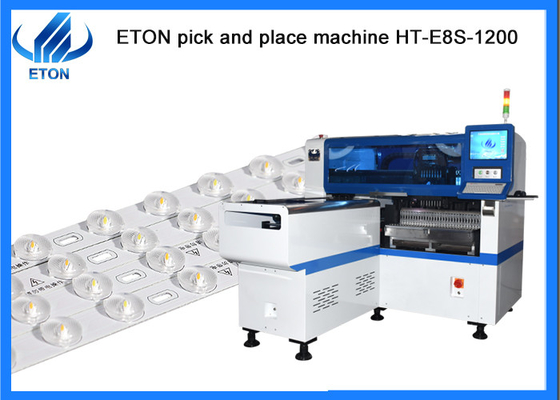

Max PCB 1.2M SMT Pick Place Machine LED Lens Full Line Solution

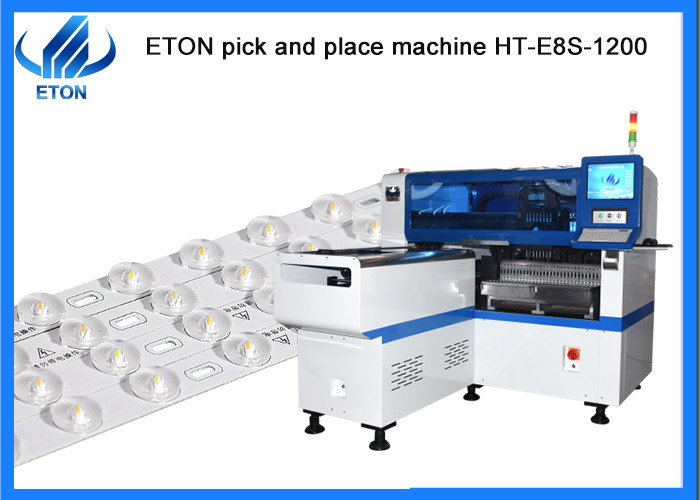

Max PCB 1.2M SMT Pick Place Machine LED Lens Full Line Solution

Large Image :  Max PCB 1.2M SMT Pick Place Machine LED Lens Full Line Solution

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: HT-E8S-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Detailed Product Description
Name: HT-E8S-1200 Power Supply: 380AC 50HZ
Warranty: 1 Year Condition: New
Product Name: Automatic SMT Pick And Place Machine Mounting Speed: 45000 CPH
Dimension: 2550*1650*1550mm Pcb Thickness: 0.5-5 Mm
High Light:

5mm PCB SMT Pick Place Machine

,

PCB 1.2M SMT Chip Mounting Machine

,

LED Len SMT Chip Mounting Machine

LED lens full line solution Max PCB 1.2M SMT pick and place machine



Features

  • Single module magnetic linear motor multifunctional pick and place machine.
  • Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
  • Component: Min. Size 0402, Max. Height 15mm.
  • Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

Exclusive Patented Technology:

  • Electronic feeder feeding system.
  • Vision alignment flight identification, Mark correction.
  • Non- stop material re-loading function.
  • Auto-optimization after coordinates generated, etc.

Machine parameter

Model HT-E8S-1200
Dimension 2550mm*1650mm*1550mm
Total weight 1700kg
PCB length width

Max:1200*500mm

Min:100*100mm

PCB thickness 0.5-5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group picking and separately placing, Separately picking and separately placing
Mounting precision ±0.04mm
Mounting speed 45000CPH
No. of feeders station 28PCS single module
No. of head 12 PCS single module



Our Exhibitions

As an experienced company of trading SMT pick and place machine with more than 30 countries and regions aboard, Eton has participated in many exhibitions of foreign countries, such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc. And also we have took part in our domestic exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.

Max PCB 1.2M SMT Pick Place Machine LED Lens Full Line Solution 0

Packages

Step 1: Wrap with stretch film to prevent the equipment from.

Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.

Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.

Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.

Max PCB 1.2M SMT Pick Place Machine LED Lens Full Line Solution 1

Shipping and Delivery

Land transportation: suitable for inland countries and it is affordable;

Air freight: for urgent good, and it is the most expensive transportation way;

Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

Max PCB 1.2M SMT Pick Place Machine LED Lens Full Line Solution 2
