Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Power Supply: | 380AC 50HZ |
---|---|---|---|
Condition: | New | Weight: | 1700KG |
Mounting Speed: | 45000 CPH | Pcb Thickness: | 0.5-5 Mm |
Positioning Accuracy: | ±0.04mm | Feeders: | 28 |
High Light: | 1.2m Tube PCB Assembly Machine,1.2m Tube SMT Placement Machine,LED Tube PCB SMT Placement Machine |

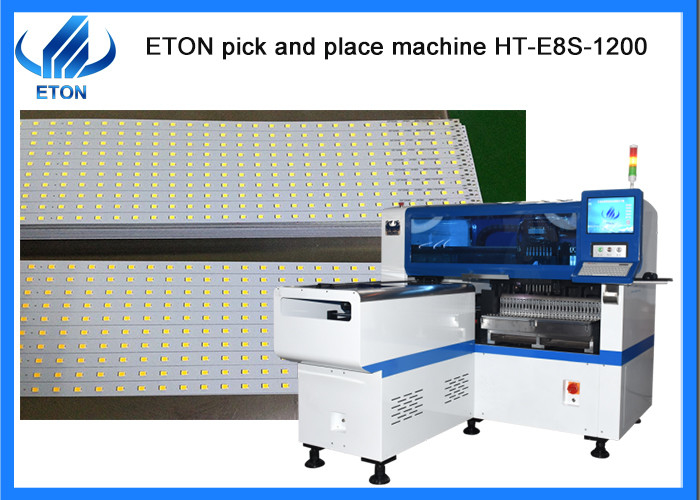

Max 1.2m LED tube PCB assembly SMT placement high speed machine
Features
Exclusive Patented Technology:
Machine parameter
Model | HT-E8S-1200 |
Dimension | 2550mm*1650mm*1550mm |
Total weight | 1700kg |
PCB length width |
Max:1200*500mm Min:100*100mm |
PCB thickness | 0.5-5mm |
PCB clamping | Adjustable pressure pneumatic |
Mounting mode | Group picking and separately placing, Separately picking and separately placing |
Mounting precision | ±0.04mm |
Mounting speed | 45000CPH |
No. of feeders station | 28PCS single module |
No. of head | 12 PCS single module |
Machine applicaiton
HT- E8S - 1200 semi - automatic production line is suitable for mounting all kinds of LED lights and circuit boards For example: LED bulb, DOB bulb Panel lamp, Down-light, Lamp tube, Street lamp, Display screen, Circuit board and Other products.
HT-E8S-1200 SMT Line Maximum PCB size is 1200 * 350mm
(HT-E8S-1200 Maximum PCB Width could be adjust to 500mm)
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Market
In India: SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, CENTURY LED, AUTOPAL, SKYQUAD, NTL, KONARK, CEPL, FLARE, SLS are one of our large customers.
In Turkey: ACK, KENDAL, KING LED are one of our large customers.
In Vietnam: RangDong, TAMKIM are one of our large customers.
In Egypt: UNISTAR is one of our large customers.
In Tunis: SKY INDUSTRIES, FAWANIS are one of our large customers
Related machine
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
