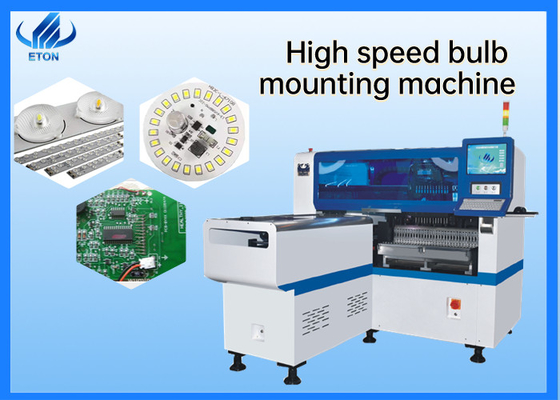

SMT LED machine rigid PCB strip light high speed
Product Introduction

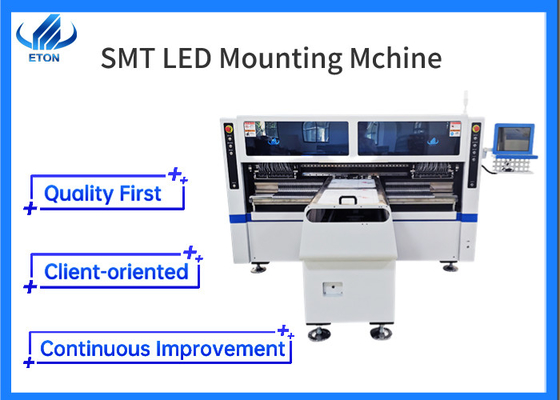

In order to meet the needs of customers to reduce costs and improve production efficiency, ETON has designed a 68 head SMT LED machine. ETON uses high-end magnetic linear motors and servo motors, which will achieve high speed and high stability. This is a cost-effective SMT LED machine suitable for mounting products such as lamp tubes and panel lights.
Parameter
| Product name |
SMT LED machine |
| Model |
HT-F9 |
| Length: |
2700 mm |
| Width: |
2300 mm |
| Height: |
1550 mm |
| Total weight: |
1700 kg |
| Mounting speed: |
200000-250000 CPH (optimum) |
| No.of camera |
5 PCS |
| No.of nozzles |
68 PCS |
| No.of feeders station |
68 PCS |
| Components |
LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers. |
| Feeding way |
Electric feeder with double motor |
| Conveyor transmission: |
Max length: 1200 mm |
| Transmission direction |
Single |
Detailed description
- The head of the SMT LED machine has two, consisting of four modules, each with 17 suction nozzles. Using the pneumatic principle, the components are sucked through the head pneumatic device.
- The head of the SMT LED machine is equipped with a tank chain to wrap the flat wires on the head, ensuring the translation of the wires on the one hand, and reducing the wear and tear of the wires during work on the other hand, extending their service life.
Preparation for packaging and transportation before the SMT LED machine starts shipping
- Pack the machine with foam film
- Load the packed machine into wooden cases
- The packed wooden boxes are loaded into trucks and then transported to the port
FAQ
Q1: Is the machine I bought a complete set?
A: Yes, but it should be noted that we can give away some accessories, such as suction nozzles, but if you need them, you can also purchase more.
Q2: How about the product operating instructions?
A: After purchasing our machine, you will receive a video of the machine's operation. Of course, if conditions permit, we can send engineers to help you
OUR COMPANY
ETON is a manufacturing and process solution provider focusing on R&D,production,sales and service of SMT high-speed pick and place machine.ETON specializing in this industry for 12 years.
We enjoy many honors
ETON is the leading manufacturer of global optoelectronic high speed pick and place machine , the products are exported to more than 20 countries and regions , including South Korea , India , Vietnam , Tunisia , Egypt , Turkey , Russia , Brazil etc . ETON obtains a number of intellectual property technologies , including 9 invention patents ,112 practical patents ,12 software copyrights . ETON is rated as " Shenzhen high - tech enterprise "" Guangdong high - tech enterprise "" China high - tech enterprise "" Shenzhen TOP Brand ""2015 LED Technology Innovation Award " “The 4th China LED First Innovation Award" “Industry Special Contribution Award "etc .
We are in the Leading Position
Looking forward to the future , ETON will aim to " Create a well - known national brand and build a world - class enterprise ", and is committed to continuously providing the market with products and services that are " More intelligent , More professional , More efficient , and Lower consumption ", forge ahead , and make greater contributions to the industry and society .
