Product Details:
Payment & Shipping Terms:
|
| Warranty: | 12 Months | Applicable Components: | Roll-to-roll Strip Light |
|---|---|---|---|
| Mounting Speed: | 500000cph | Pcb Thickness: | 0.1-0.5mm |
| No. Of Nozzle: | 136 Pcs | Feeders: | Usually Use 8mm And 12mm |
| High Light: | 500K CPH LED PCB Assembly Machine,136 pcs nozzle PCB Assembly Machine,No Wire LED Pick And Place Machine |
||

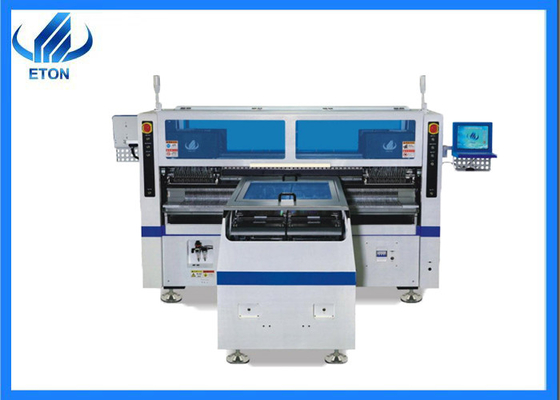

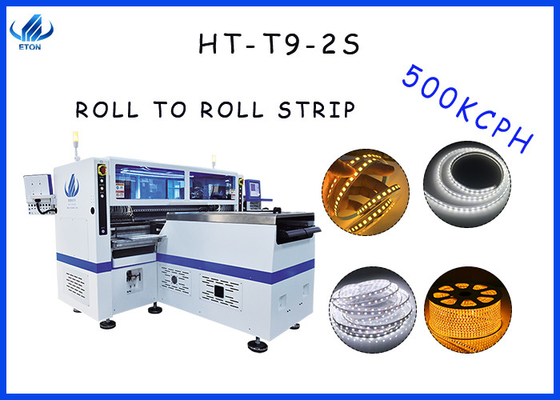

500K CPH LED pcb And Assembly LED Pick and place machine for no-wire strip light
Brief introduction
The machine T9-2S with the magnetic linear motor and servo motor which is more stable and accurate than normal step motor, software designed and developed by ourselves. It is available in English and Chinese. And we will keep updating it. So we'll update software for our clients that is free if clients need.
Machine is of high quality,with one-year warranty, lifetime maintenance
Feature
1. SMT pick and place machine XYZ axis adopts linear motor +servo motor to ensure it is stable and accuracy
2. Four groups of mounting heads work together, under 10 cameras inspection,come with 136 feeder positions will make machine working more
Machine details
| Model | ETON T9-2S | ETON HT-T9 |
| No. Of nozzles | 136 pcs | 68 pcs |
| Placement Speed | 500000CPH(Optimum) | 250000CPH(Optimum) |
| Placement Accuracy | ±0.05 | ±0.02 |
| Applicable PCB | 250(±10)mm*any length | 250mm*any length |
| Dimension(mm) | 3454*3035*1777 | 3100*2300*1550 |
| Weight(kg) | 3100 | 1700 |
Applications
Why choose us
Clients more than 30 countries and area around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipment
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
FAQ
Q1 : What is the max sizes board/pcb can the machine work for ?
A1 : The T9-2S machine can work for max PCB size 260mm*any length.
Q2: Can this machine work for led drivers and other electronics ?
A2:Sorry, our t9-2s pick and place machine just for making roll-to-roll strip light, can't make led drivers and other electronics. But if you want a machine to make this type, we have other model machine can work for smd pcb for led drivers and also can work for battery charges , mobile display ,e-cigarette control device ,appliance control board etc .
Q3:How is your after-sales services ?
A3: ETON have more than 10 years experiences on machines after-sales services ,we have engineer for overseas installation and training services ,like India, Egypt, Turkey, etc.
Q4: Is this machine easy for operation ? i afraid i can not run it well by myself .
A4: It does not matter, we'll arrange our overseas engineer to your factory to training. And we have many clients use machine at their first, just spend 5-8 working days they can independently operate machine very well. So for this one, please don't worry.
