Product Details:
Payment & Shipping Terms:
|
Name: | SMT LED PICK AND PLACE MACHINE | Application: | Applied To The Optoelectronic Industry |
---|---|---|---|
Power Supply: | 4kw | Mounting Speed: | 45000cph |
No. Of Nozzles: | 12pcs | Pcb Thinckness: | 0.2-5mm |
Pcb Size: | 100*100~1200*500mm | Feeding Way: | Electric Feeder With Double Motor |
High Light: | Mechanical SMT Pick Place Machine CCC,double motor SMT mounter machine,SMT Pick Place Machine 4kw |

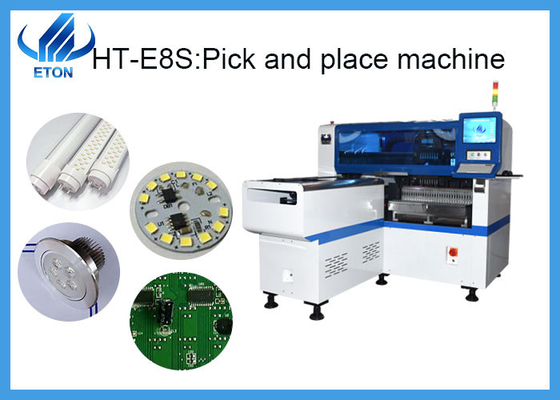

China Factory Sale Mechanical equipment for electronic products smt pick and place machine
Machine details
Dimension | 2550*1650*1550mm | Weight | 1700kg |
Max pcb size | 1200*500mm | Min pcb size | 100*100mm |
No. Of nozzles | 12 pcs | Optimal speed | 45000cph |
PCB thickness | 0.5-5mm | No. Of camera | 2 sets |
No. Of feeder station | 24pcs | Feeding way | Electric feeder |
Product Advantages
1.High Precision: Equipped with 2 sets of cameras
1 set of Mark camera, 1 set of the flight identification camera, could effectively mount 0402-17mm components, LED beads, diodes, transistors, shaped components etc.
2.Fast Speed
The max optimal speed: 45000CPH
3.Full Automation
With rail guide, could be connected to other machines to achieve inline operation, thus greatly reduce labor costs, only need one person to complete the work.
4.Strong Stability
XYZ axis adopts High-end magnetic linear motor+ server motor- High precision, strong stability, 24-hour working stably.
Application for
Application Area | Application Industry |
Personal Entrepreneurship | Household Electrical Appliance Industry |
Laboratory Proofing | Automotive Electronics |
Mass Production | Power Diver |
Processing of The Third Party | LED Lighting |
R&D Customization | Security Instruments and Meters |
Scientific&Research | Intelligent Control |
Efficient Teaching | Consumer Electronics |
Logistics Network | |
Military Industry |
Package
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
Shipping way:
1)By air ,for sample and small package ,worldwide express like DHL,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;
FAQ
1.Are you a trade company or a manufacture?
We are a manufacturer,OEM & ODM service are available.
2.What is your delivery date?
The delivery date is about 15-30 working days after receipt of payment.
3.What is your payment terms?
Accept payment by T/T, Alibaba.

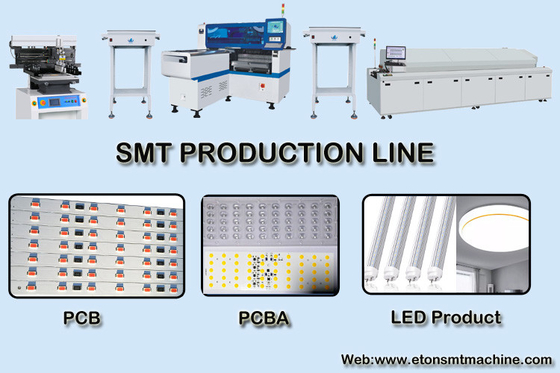

4.Can you provide a whole line solution?
Yes, we can.We can supply SMT line, LED production line.
