Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Weight: | 2500KG | Power Supply: | 380AC 50HZ |
| Applicable Components: | LED Chip、capacitors、resistors、IC、shaped Components、etc. | Dimension: | 3150*2250*1650mm |
| Speed: | 90000CPH | Feeder: | 24 |
| Condition: | New | Color: | White |
| High Light: | 24 Heads LED Mounting Machine,90000 CPH LED Bulb Making Machine,Multi Functional LED Mounting Machine |
||
Product Description

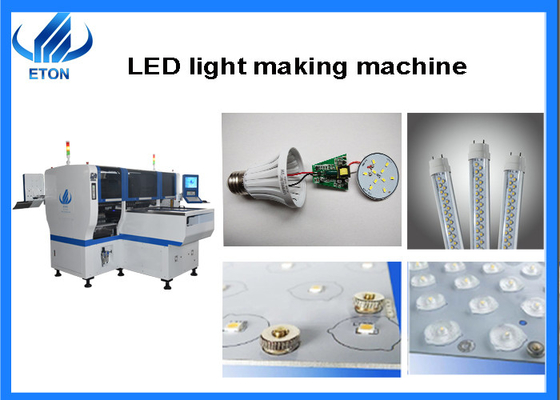

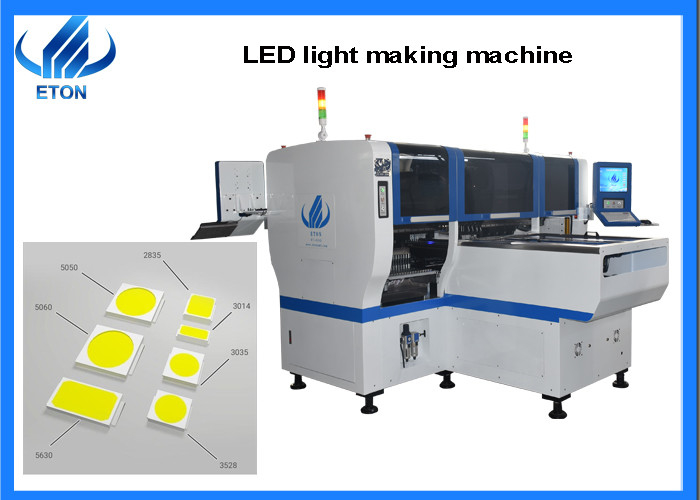

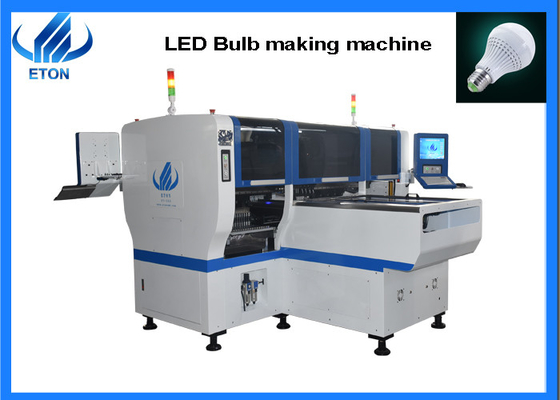

HT-E8D-1200 is big machine for producing two pcb at the same time with 90000 CPH. Specially, it is suitable for max pcb size is 1200*300mm, suitcable for led tube/panel/led strip/bulb/lens/etc.
ETON tech adjustable placement head. Component picking position can be adjusted. According to PCB pad.Apply to LED chip,capacitors, resistors,lens,IC,shaped components.etc and component-MIN size 0404,MAX height 15mm. The placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 90000CPH.
Technical parameter

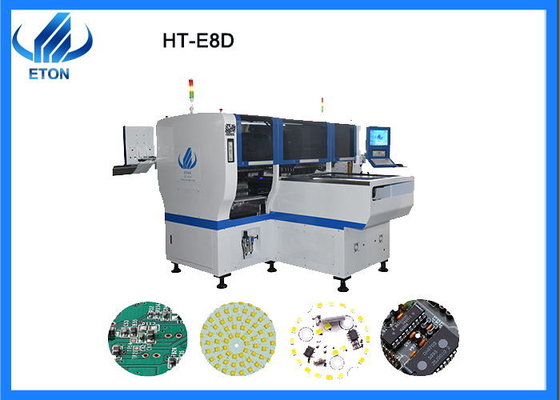

| Model | HT-E8D |
| Length | 3150mm |
| Width | 2250mm |
| Height | 1650mm |
| Total Weight | 2500kg |
| PCB size(L* W) | Max:1200*300mm Min；100*100mm |
| PCB Thickness | 05-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| System | Windows7 |
| Software | R&D Independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, mouse |
| No.of camera | 2setsDigital camera(Digital camera) |
| Components | LED chip,capacitors,resistors,IC,shaped components,etc. |
| No.of feeders station | 28PCS |
| No.of nozzles | 12PCS |
Our Service
Trade show and sales service
We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.
After sales service
Maintenance period:1 year.
Visit customers regularly and gather information.
Provide latest information about technology and equipment.
ETON Profile
Shenzhen ETON Automation Equipment CO., LTD. is one of very few high-tech manufacturers committed to provide "professional, high efficiency, low consumption" automatic high-speed SMT pick and place machine for customers,combining product development,production,sales and service as one. At present,as for the series "HT" high-speed and multi-functional machine,speed is the world's fastest. "Speed" and "Stability" are the core competencies of ETON,technology innovation and strict quality management principles coupled with excellent service , to enable us provide better professional full SMT solution continously and create superior value for our customers.
FAQ
1. If there is a problem with the machine,can it be repaired?
A: Of course, the machine failure rate is 0.001 , and in addition to the warranty period, we also provide you with free maintenance 1-2 times a year.
2. Is there any quality guarantee?
A: We stick to quality first, client-oriented, Continuous improvement!
3. Why choose us?
A: We provide professional in SMT line for 11 years,with strong production and strong capacity and R&D team,Has provided a lot of clients with modern SMT production line solutions.
