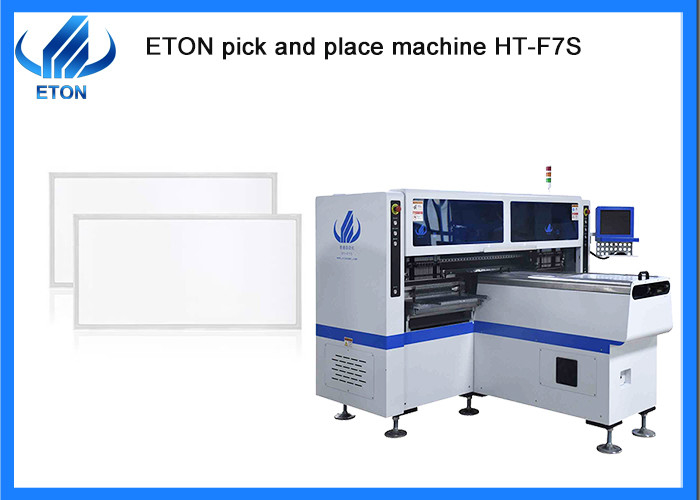

Dual arms 180000 capacity LED panel light making SMT pick and place machine

Dual arms 180000 capacity LED panel light making SMT pick and place machine
Dual arms 180000 capacity LED panel light making SMT pick and place machine

Large Image :  Dual arms 180000 capacity LED panel light making SMT pick and place machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: HT-F7S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Application: LED Strip, Tube, Panel Light Power Supply: 380AC 50HZ
Warranty: 1 Year Name: SMT Automatic Pick And Place Machine
Weight: 1700KG Mounting Speed: 150000-180000 CPH
Dimension: 2700*2300*1550mm Feeders: 68 Pcs
Pcb Thickness: 0.5-5 Mm

Dual arms 180000 capacity LED panel light making SMT pick and place machine



Production description

Dual arm professional high-speed mounter, mounting 2-4 types of materials at the same time capacity reach 180000 CPH.

Features

  • Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
  • Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
  • Calibration automatically, high precision, available for RGB.
  • Exclusive patent technology: Group picking and group mount placing.
  • IPC9850 capacity: 150000-180000 CPH

Machine parameter

Model HT-F7S
Dimension 2700*2300*1550mm
Total weight 1700kg
PCB length width

Max: 1200*330mm

Min: 100*100mm
PCB thickness 0.5-5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group picking and group placing
Mounting precision ±0.02mm
Mounting speed 150000-180000 CPH
No. of feeders station 68 PCS
No. of head 34PCS



Machine main part

Dual arms 180000 capacity LED panel light making SMT pick and place machine 0

Certificates

As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

etc.

Dual arms 180000 capacity LED panel light making SMT pick and place machine 1

Service

Free Installation: provide free installation machine to ensure smooth production

Free Warranty:1 year warranty factory service, free replacement of space parts

Free Training: Professional training of operating and maintenance

Free Technical Support: 7*24 technical online support

Free Software Upgrade: Offer free software upgrade whole lifetime

Dual arms 180000 capacity LED panel light making SMT pick and place machine 2

Shipping and Delivery

Land transportation: suitable for inland countries and it is affordable;

Air freight: for urgent good, and it is the most expensive transportation way;

Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

Dual arms 180000 capacity LED panel light making SMT pick and place machine 3
