Max 1.2m LED strip, tube making 180K capacity placement machine

Large Image : Max 1.2m LED strip, tube making 180K capacity placement machine

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE,CCC,SIRA
Model Number:	HT-F7S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Name:	SMT Automatic Pick And Place Machine	Power Supply:	380AC 50HZ
Warranty:	1 Year	Product Name:	HT-F7S
Weight:	1700KG	Condition:	New
Mounting Speed:	150000-180000 CPH	Dimension:	270023001550mm

Max 1.2m LED strip, tube making 180K capacity placement machine

Production description

Dual arm professional high-speed mounter, mounting 2-4 types of materials at the same time capacity reach 180000 CPH.

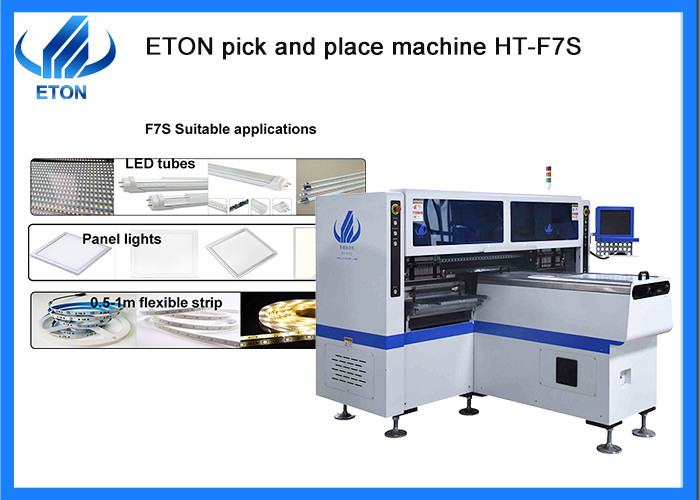

Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group picking and group mount placing.
IPC9850 capacity: 150000-180000 CPH

Model	HT-F7S
Dimension	270023001550mm
Total weight	1700kg
PCB length width	Max: 1200330mm Min: 100100mm
PCB thickness	0.5-5mm
PCB clamping	Adjustable pressure pneumatic
Mounting mode	Group picking and group placing
Mounting precision	±0.02mm
Mounting speed	150000-180000 CPH
No. of feeders station	68 PCS
No. of head	34PCS

Machine application

Max 1.2m LED strip, tube making 180K capacity placement machine 0

Market

ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption.

Max 1.2m LED strip, tube making 180K capacity placement machine 1

Shipping and Delivery

Shipping Way:

※ By air, for sample and small package

※ By sea, for large package and quantity;

※ Other ways as customer requested.

Delivery Time:

※ Within 30 Days.

Max 1.2m LED strip, tube making 180K capacity placement machine 2

Related machine

We can provide a whole SMT production line,led light production line:

1.Pick and place machine

2. Loader machine

3. Conveyor machine

4. Stencil printer machine

5. Reflow oven machine

6. Unloader machine

7. Solder paste mixer

8. Roll to roll led strip light assembly machine

Max 1.2m LED strip, tube making 180K capacity placement machine 3
