FPCB 10M 50M 100M STRIP 250000 capacity SMT Pick and place machine

Large Image : FPCB 10M 50M 100M STRIP 250000 capacity SMT Pick and place machine

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE,CCC,SIRA
Model Number:	HT-T9
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Warranty:	1 Year	Name:	SMT Automatic Pick And Place Machine
Application:	LED Strip	Power Supply:	380AC 50HZ
Mounting Speed:	200000-250000 CPH	Dimension:	310023001550mm
Feeders:	68 Pcs	Pcb Thickness:	0.5-1.5 Mm

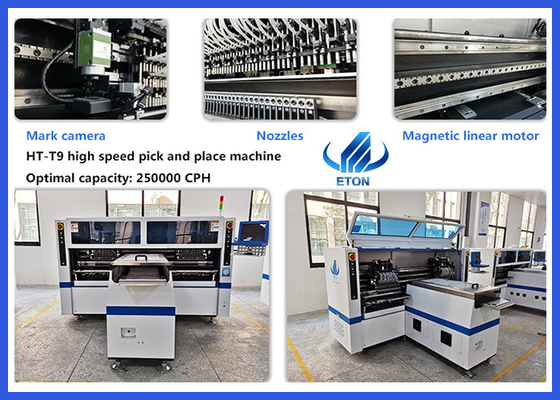

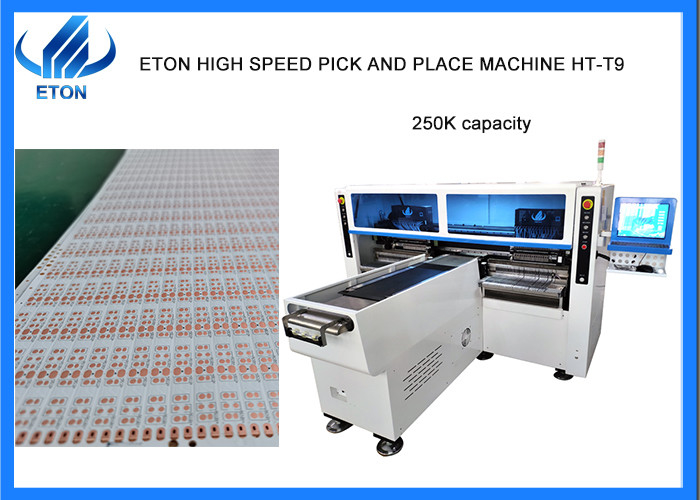

FPCB 10M 50M 100M STRIP 250000 capacity SMT Pick and place machine

Production description

Dual arm magnetic linear high speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000 CPH.

Features

Producing 4 types of materials at the same time with high capacity, available for 5m, 50m or any length of flexible strip and Roll to Roll.
Dual arm four module, 17 nozzles for each mounting part, part A, part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for for RGB.
Exclusive patent technology: Group to pick and group to mount.

Machine parameter

Model	HT-T9
Dimension	310022501650mm
Total weight	1700kg
PCB length width	250mm*any length
PCB thickness	0.5-1.5mm
PCB clamping	Vacuum adsorption, cylinder splint, adjustable track width
Mounting mode	Group picking and group placing
Mounting precision	±0.02mm
Mounting speed	20-25W CPH
No. of feeders station	68PCS
No. of head	68PCS

SMT Line solution

FPCB 10M 50M 100M STRIP 250000 capacity SMT Pick and place machine 0

Our advantage

ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies.

Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.

FPCB 10M 50M 100M STRIP 250000 capacity SMT Pick and place machine 1

Our Exhibitions

Participate in various exhibitions at home and abroad every year (except during the epidemic period)

Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.

Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.

FPCB 10M 50M 100M STRIP 250000 capacity SMT Pick and place machine 2

Shipping and Delivery

FPCB 10M 50M 100M STRIP 250000 capacity SMT Pick and place machine 3
