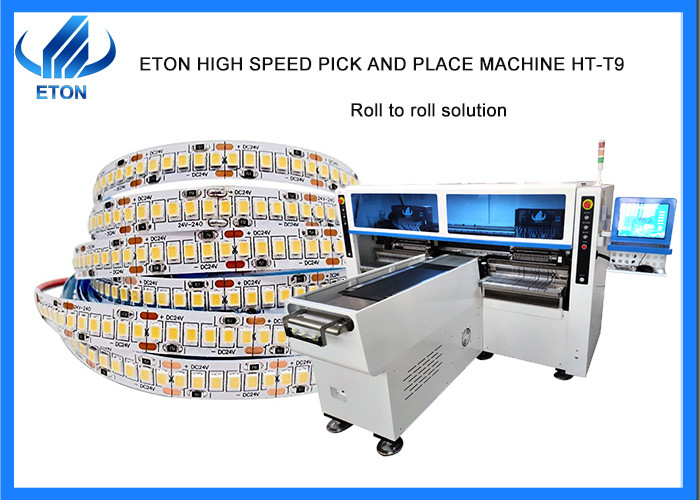

SMT 250K super speed 250mm*any length led strip Surface mounted machine

SMT 250K super speed 250mm*any length led strip Surface mounted machine
SMT 250K super speed 250mm*any length led strip Surface mounted machine

Large Image :  SMT 250K super speed 250mm*any length led strip Surface mounted machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: HT-T9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Warranty: 1 Year Application: LED Any Length Of Flexible Strip
Power Supply: 380AC 50HZ Condition: New
Weight: 1700KG Mounting Speed: 200000-250000 CPH
Dimension: 3100*2300*1550mm Feeders: 68 Pcs
Pcb Thickness: 0.5-1.5mm

SMT 250K super speed 250mm*any length led strip Surface mounted machine

Production description
Dual arm magnetic linear high speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000 CPH.

Features

  • Producing 4 types of materials at the same time with high capacity, available for 5m, 50m or any length of flexible strip and Roll to Roll.
  • Dual arm four module, 17 nozzles for each mounting part, part A, part B can be mounted separately or synchronously.
  • Calibration automatically, high precision, available for for RGB.
  • Exclusive patent technology: Group to pick and group to mount.


Machine parameter


ModelHT-T9
Dimension3100*2250*1650mm
Total weight1700kg
PCB length width250mm*any length
PCB thickness0.5-1.5mm
PCB clampingVacuum adsorption, cylinder splint, adjustable track width
Mounting modeGroup picking and group placing
Mounting precision±0.02mm
Mounting speed20-25W CPH
No. of feeders station68PCS
No. of head68PCS

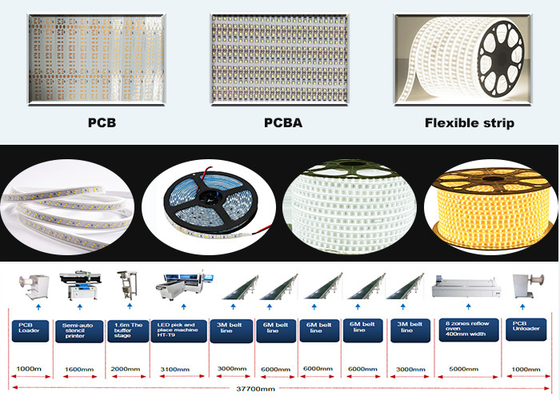

Machine application
SMT 250K super speed 250mm*any length led strip Surface mounted machine 0

Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
SMT 250K super speed 250mm*any length led strip Surface mounted machine 1
Our Exhibitions
As an experienced company of trading SMT pick and place machine with more than 30 countries and regions aboard, Eton has participated in many exhibitions of foreign countries, such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc. And also we have took part in our domestic exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
SMT 250K super speed 250mm*any length led strip Surface mounted machine 2
Packages
Step 1: Packing in film package to prevent dust and water to the machine
Step 2: Packing in foam cotton to protect the outside of the machine
Step 3: Packing in vacuum package to keep dry of the machine during transportation
Step 4: Transportation by truck to specified port
SMT 250K super speed 250mm*any length led strip Surface mounted machine 3
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
SMT 250K super speed 250mm*any length led strip Surface mounted machine 4
