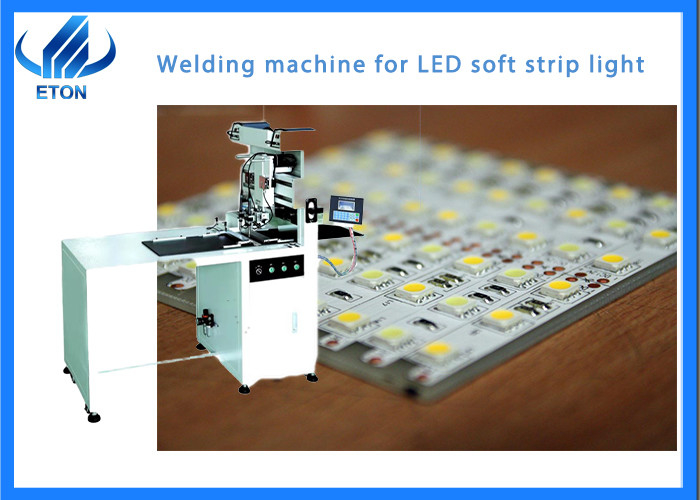

Welding machine for LED soft strip light---ET-800
Product Brief:
ET-800 LED Soft light strip plate Welding machine is a dedicated automatic welding equipment for 5 meter LED strip welding, according to the characteristics of LED equipment 5 meters depth of humanization design, engaged in a variety of different solder joints instead of manual soldering work, solve the manual welding of weld solder joint is not uniform, and other phenomena, and compatible with a variety of types of LED soft strip size of welding, simple operation and high practicability, quality stability, greatly enhance the efficiency.
Product advantages:
- Simple programming, operation control box mobile head position.
- Welding speed, high efficiency, a solder machine can save 5-6 people
- Save tin wire, good consistency of solder joint
- High power heating controller ensures the stability of continuous welding
- The utility model relates to a double head fine tuning welding gun structure, which is convenient for regulating the welding torch spacing and synchronous operation
- Multi axis manipulator, advanced motion control algorithm, to improve the kinematic positioning accuracy and repeatability accuracy
- According to the professional design of the lamp batten, it is convenient for manual feeding and feeding
- Production efficiency: 1800-2000 meters /H.
- It can replace the manual process and optimize the quality control.
- Improve efficiency, save manpower, simple operation, new staff can achieve the welding effect of skilled workers
Scope of application:
LED soft light plate soldering machine application range: suitable for LED monochromatic light, 5050 RGB lamp string, lamp belt, lamp strip and other products
Technical parameters:
| Item |
parameter |
| Device name |
LED welding machine for soft light strip plate |
| Model |
ET-800 |
| control mode |
32 position DSP |
| Welding head |
2 iron heads work at the same time |
| Working stroke |
X axis 350MM,Z axis 150MM,platform 1000MM |
| Repeatability accuracy |
±0.05mm |
| Equipment power |
600w |
| Power Supply |
220V,50-60HZ |
| weight |
100KG |
| Size |
1600*1200*1400(Length*Width*Height) |
Company introduction
Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
Eton mission: professional, excellent technology, sharing the results.
Eton goal: to create a national brand, build international Chinese enterprise.
Eton purpose: to create value for customers, creating benefits for society.
FAQ
Q: Does your machines have quality certificate?
A: All of the machines have passed CE,SIRA and CCC certificate and have own patent.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: What is the payment way ?
A:We accept the payment terms: L/C, T/T.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
Q: Can you provide a whole line solution?
A: Yes, we can .We can supply SMT line and LED production line.
