Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Application: | 0.5 M,1m Strip Light ,panel Light,LED Tube |
|---|---|---|---|
| Dimension: | 3100*2300*1550mm | Weight: | 1700KG |
| Condition: | 100% Original | Feeders: | 68PCS |
| Power Supply: | 380AC 50HZ | Mounting Speed: | 250000CPH |
| High Light: | Flexible Strip SMD High Speed Mounter,68 Feeders SMD High Speed Mounter,LED Strip SMD High Speed Mounter |
||

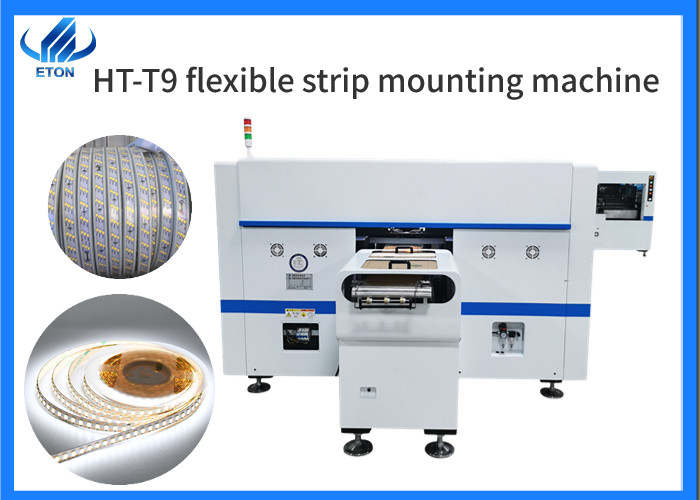

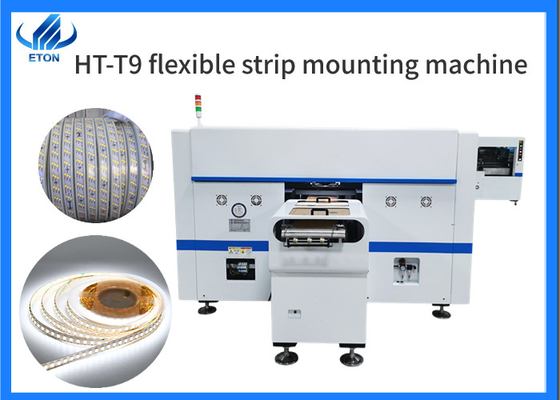

SMD high speed mounter for LED flexible strip
Product description
1,The SMT high speed mounter HT-T9 is designed with 68 suction nozzles and 68 feeding stations. It is controlled by two arms, with 34 suction nozzles controlled by one arm each. Among them, 34 suction nozzles are divided into two groups, each with 17 nozzles, and each group is jointly controlled by a servo motor and a corner motor.
2,The four different materials of a product can be pasted simultaneously, which can accelerate product production without affecting high productivity.
3,The mounter HT-T9 is suitable for one-time mounting of soft light strips with a length of 5 meters, 20 meters, 50 meters, or even more.
4,During mounting, a single plate of material can be attached separately, and the same plate of material is always attached to the same light bar.
5,Calibration automatically,high precision,available for RGB.
6,Exclusive patent technology:group to take and group to mount.
Equipment Details
The stator itself is a permanent magnet, and the interaction between the moving stator and the magnetic pole causes repeated movement of the mounting head.
Transport the PCB board to the designated location,the platform has an adsorption function, which is conducive to adsorption of soft PCB boards.
Detect if there is a PCB on the track.
Parameter
| Product name | SMT high speed mounter |
| Model | HT-T9 |
| PCB size(mm) | Max:250*any length |
| Mounting precision | ±0.05mm |
| Mounting height | ≤5mm |
| Mounting speed | 200000-250000CPH |
| Components | LED3010/3020/5050/3525 resistors, capacitor, etc. |
| Components space | 0.5mm |
| No.of feeders station | 68 PCS |
| No.of heads | 68 PCS |
| Positioning way | Optical |
| Feeding way | Electric feeder with double motor |
| X,Y Axis drive way | High-end magnetic linear motor and servo motor |
Package
We usually use vacuum wooden boxes to package our products. Vacuum can be very shockproof and ensure the integrity of the product. If you have special requirements for packaging, we can also achieve them for you.
FAQ
Q1: What are the trade terms commonly used by your company?
A: We usually use EXW and FOB.
Q2: What valuable services can I obtain after purchasing a SMT high speed mounter?
A: We will follow up all processes, help you clear customs, and do our best to ensure your interests. At the same time, after your production is on track, we will also visit regularly to share your latest industry information.
OUR COMPANY
We have a history for more than ten years
ETON is a manufacturing and process solution provider focusing on R&D,production,sales and service of SMT high-speed pick and place machine.ETON specializing in this industry for 12 years.
We enjoy many honors
ETON is the leading manufacturer of global optoelectronic high speed pick and place machine , the products are exported to more than 20 countries and regions , including South Korea , India , Vietnam , Tunisia , Egypt , Turkey , Russia , Brazil etc . ETON obtains a number of intellectual property technologies , including 9 invention patents ,112 practical patents ,12 software copyrights . ETON is rated as " Shenzhen high - tech enterprise "" Guangdong high - tech enterprise "" China high - tech enterprise "" Shenzhen TOP Brand ""2015 LED Technology Innovation Award " “The 4th China LED First Innovation Award" “Industry Special Contribution Award "etc .
