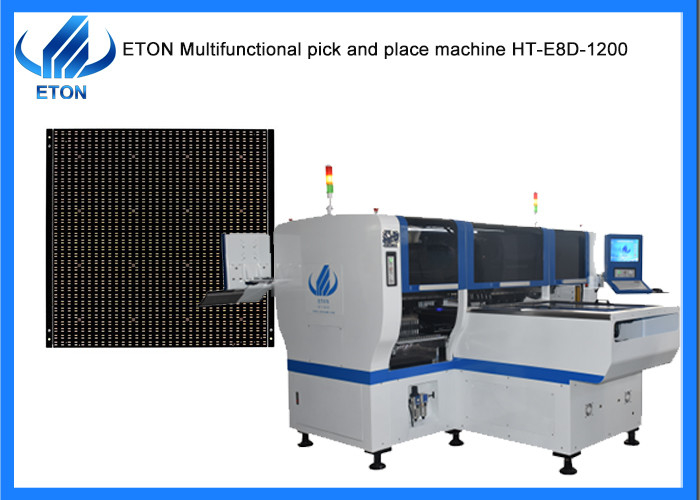

MAX PCB Size 1200mm Pick And Place Machine Automatic Multifunctional

Large Image : MAX PCB Size 1200mm Pick And Place Machine Automatic Multifunctional

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE,CCC,SIRA
Model Number:	HT-E8D-1200
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Warranty:	1 Year	Application:	LED Lights, Electrical Products, Household Appliance
Power Supply:	380AC 50HZ	Condition:	New
Weight:	2500 Kg	Mounting Speed:	90000 CPH
Dimension:	3150mm2250mm1650mm	Feeders:	48PCS
Positioning Accuracy:	±0.04 Mm
Highlight:	MAX 1200mm Pick And Place Machine , SIRA Multifunctional Pick And Place Machine , 48PCS Feeders Pick And Place Machine

Automatic multifunctional MAX PCB size 1200mm pick and place machine

Product description
E8D-1200 multifunctional pick and place machine taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.

Features:

Dual system, dual module multifunctional mounter to produce two different products at the same time.
Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
Component: Min. Size 0402, Max. Height 15mm.
Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

Exclusive Patented Technology:

Electronic feeder feeding system.
Vision alignment flight identification, Mark correction.
Non- stop material re-loading function.
Auto-optimization after coordinates generated, etc.

Machine parameter

Model	HT-E8D-1200
Dimension	3150mm2250mm1650mm
Total weight	2500kg
PCB length width	Max:1200300mm Min:100100mm
PCB thickness	0.5-5mm
PCB clamping	Adjustable pressure pneumatic
Mounting mode	Group picking and separately placing, Separately picking and separately placing
Mounting precision	±0.04mm
Mounting speed	90000CPH
No. of feeders station	48PCS single module
No. of head	24 PCS single module

Machine main part
MAX PCB Size 1200mm Pick And Place Machine Automatic Multifunctional 1
Packages
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
MAX PCB Size 1200mm Pick And Place Machine Automatic Multifunctional 2
Service
Free Installation: provide free installation machine to ensure smooth production
Free Warranty:1 year warranty factory service, free replacement of space parts
Free Training: Professional training of operating and maintenance
Free Technical Support: 7*24 technical online support
Free Software Upgrade: Offer free software upgrade whole lifetime

High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
MAX PCB Size 1200mm Pick And Place Machine Automatic Multifunctional 3
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
MAX PCB Size 1200mm Pick And Place Machine Automatic Multifunctional 4
