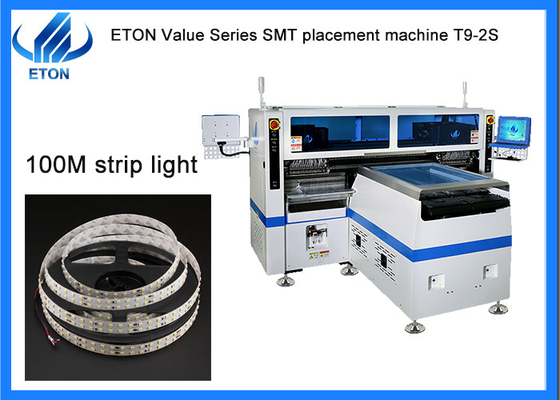

Pick twice and once place 144 PCS heads SMT Placement machine
Machine main features
- Wide components range: High speed modular heads apply to LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc.
- Unique design component leaking detection and individual component refill function. Recognition camera record the component leaking position of PCB, and fill the missing component accordingly.
- Ultra high speed capacity: 500,000 CPH
- Intelligent electric feeder,supporting high-speed machine series.
- Adjust the conveying platform according to various roll to roll strip, range 250±10 mm, the max length range is 1M per cycle.
- The distance of feeder station can be flexibly adjusted to achieve group picking and group placing, so as to realize the function of two time picking and once placing.
- The range of feeder station is double of placement four kinds of materials at the same time.
- Automatic production with identification date, correction and fill missing component automatically.
- Flight recognition camera, no pause to detect the presence or absence of components, component adsorption state, prevent placement errors.
- The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
- With the function of filling missing component automatically, realize industry 4.0 Unmanned Workshop.
- Complaint with CE standards.
Machine main parameter
| Model |
T9-2S |
| Dimension |
(L)3454*(W)3035*(H)1777 mm |
| Total weight |
3100 kg |
| PCB size |
250(±10)mm* Any length |
| PCB thickness |
0.1-0.5 mm |
| PCB clamping |
Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way |
Group picking and group placing |
| Mounting mode |
Double rail + Four groups of placement heads |
| No. of camera |
10 sets (Digital camera) |
| Software |
R&D independently |
| Repeat precision |
±0.05 mm |
| Mounting height |
≦5 mm |
| Mounting speed |
Double side: 500,000 CPH
Single side: 250,000 CPH (Optimum speed)
|
| Components range |
LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. |
| Power consumption |
9.6 KW |
| No. of feeder station |
Double side: 136 PCS (Single side: 68 PCS) |
| No. of nozzles |
Double side: 136 PCS (Single side: 68 PCS) |

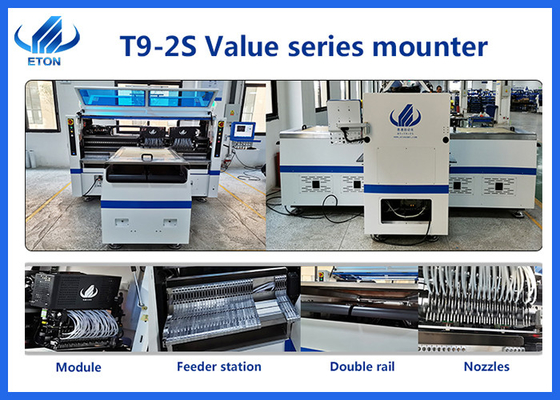

Machine main part
SMT Line solution
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
