Warranty: | 1 Year | Name: | SMT Automatic Pick And Place Machine |
---|---|---|---|
Application: | LED Any Length Of Flexible Strip | Power Supply: | 380AC 50HZ |
Mounting Speed: | Double Side: 500,000 CPH Single Side: 250,000 CPH (Optimum Speed) | Dimension: | (L)3454*(W)3035*(H)1777 Mm |
Feeders: | Double Side: 136 PCS (Single Side: 68 PCS) | Pcb Thickness: | 0.1-0.5 Mm |
High Light: | Four Arm LED Chip Mounting Machine,Automatic Strip Light Making Machine,136 Heads Strip Light Making Machine |

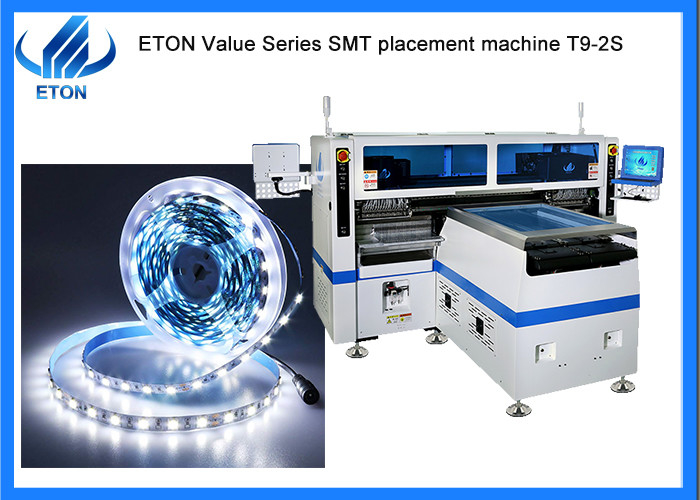

Automatic four arm LED chip strip light making 136heads mounting machine
Machine main features
Machine main parameter
Model | T9-2S |
Dimension | (L)3454*(W)3035*(H)1777 mm |
Total weight | 3100 kg |
PCB size | 250(±10)mm* Any length |
PCB thickness | 0.1-0.5 mm |
PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
Mounting way | Group picking and group placing |
Mounting mode | Double rail + Four groups of placement heads |
No. of camera | 10 sets (Digital camera) |
Software | R&D independently |
Repeat precision | ±0.05 mm |
Mounting height | ≦5 mm |
Mounting speed |
Double side: 500,000 CPH Single side: 250,000 CPH (Optimum speed) |
Components range | LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. |
Power consumption | 9.6 KW |
No. of feeder station | Double side: 136 PCS (Single side: 68 PCS) |
No. of nozzles | Double side: 136 PCS (Single side: 68 PCS) |

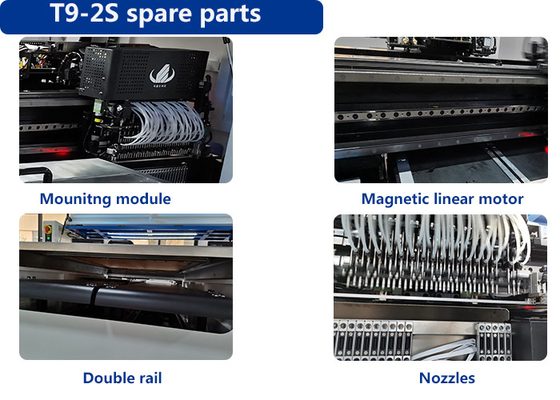

Machine main part

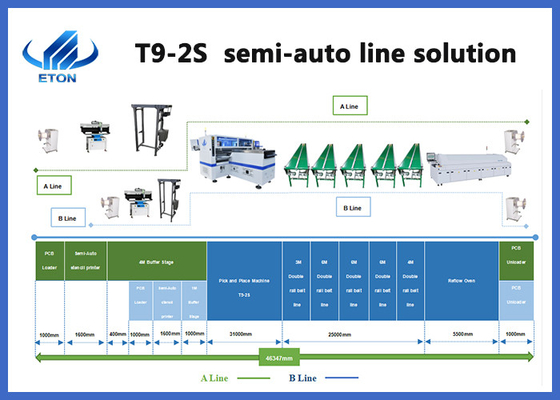

Machine application
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Market
As for the 11 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:
Related machine
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
