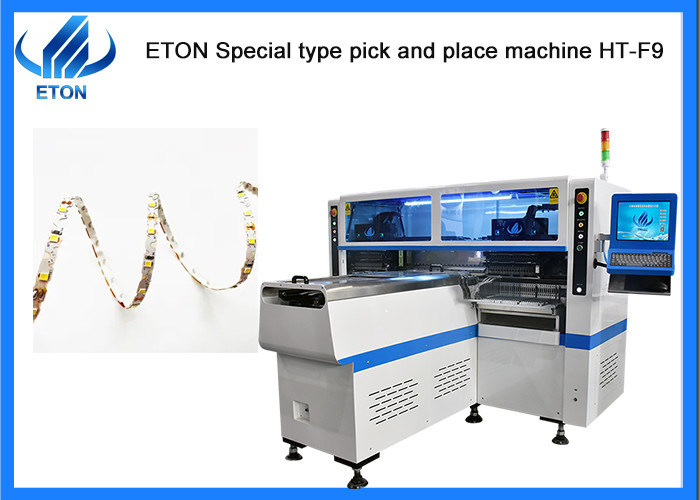

Max Width 330mm Panel Light SMT Pick Place Machine 250000 CPH Capacity

250,000 CPH capacity Max wideth 330mm panel light special pick and place machine

Production description

• Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with 250000 CPH capacity, available for board with any proportion of LED chip and resistor.
• Owing an exclusive technology of group picking and group placing, PCB size is 1200*330 can mount LED 3014/3020/3528/5050 or resistor, capacitor and bridge rectifiers, etc.

​

Features

• Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.

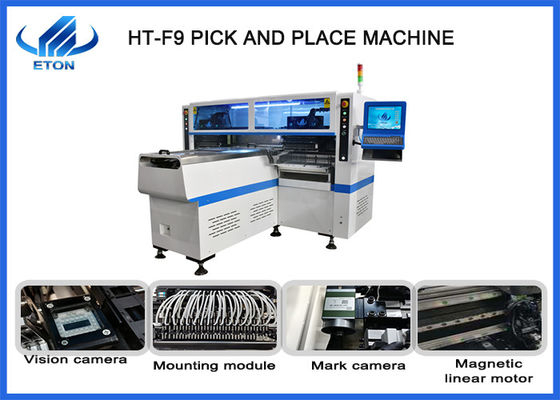

• Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
• Calibration automatically, high precision, available for RGB.
• Exclusive patent technology: Group to take and group to mount.
• IPC9850 capacity: 200000-250000 CPH

Machine parameter

Machine application

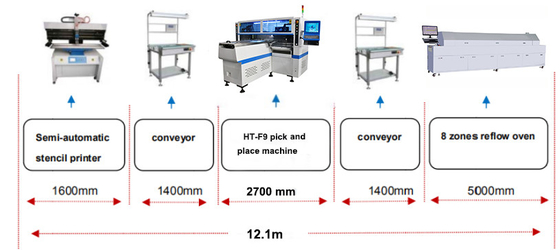

SMT Line solution

The equipment required for the semi-automatic production line includes:

• Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
• Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
• Reflow oven: melting the solder paste to make it adhere to the mounting components;
• Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line

Certificates

As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

etc.

Service

High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.

Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.

Quality First, Client-oriented, Continuous Improvement.

Shipping and Delivery

Shipping Way:

※ By air, for sample and small package

※ By sea, for large package and quantity;

※ Other ways as customer requested.

Delivery Time:

※ Within 30 Days.
