Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Weight: | 1700kg | Power Supply: | 380AC 50HZ |
| Applicable Components: | LED3014/3020/3528/5050、capacitors、resistors、bridge Rectifiers Etc | Dimension: | 2700*2300*1550mm |
| Program Method: | Online And Offline Ways | Condition: | New |
| Product Name: | LED Pick And Place Machine | Mounting Speed: | 250000CPH |
| High Light: | SMT High Speed Assembly Machine CCC,SMT LED Flexible Strip Making Machine,250000 CPH LED Flexible Strip Making Machine |
||
Product Features

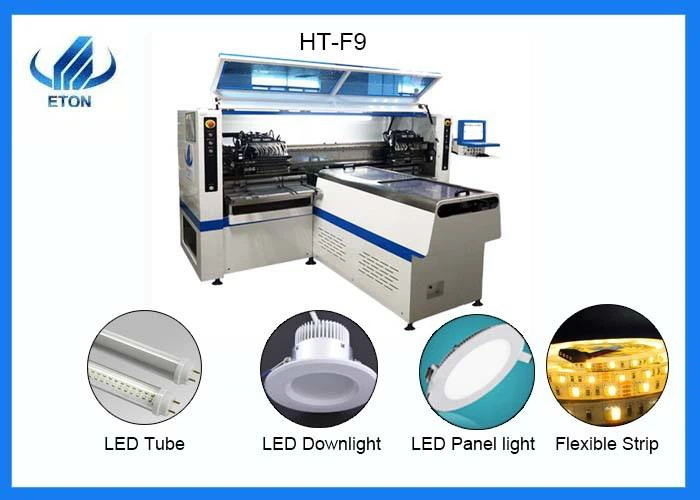

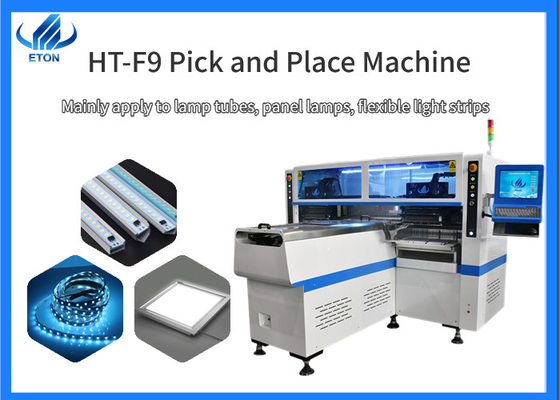

Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. Producing with 4 types materials at the same time with high capacity , available for board with any proportion of LED chip and resistor .
Dual arm four module ,17 nozzles for each mounting part , part A / B / C / D can be mounted separately or synchronously .
Calibration automatically , high precision , available for RGB .
Exclusive patent technology: Group to take and group to mount .
Technical parameter

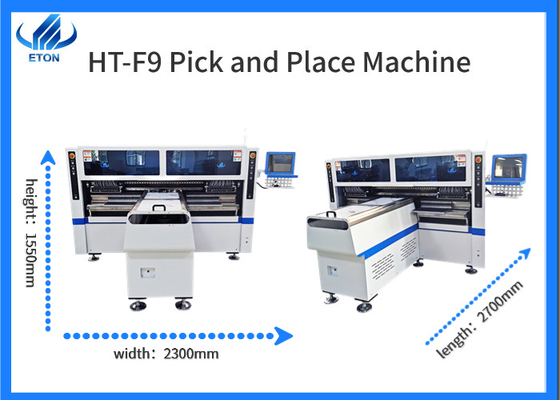

| Model | HT-F9 |
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB size(L* W) | Max:1200*300mm Min；100*100mm |
| PCB Thickness | 05-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take and group to mount |
| System | Windows7 |
| Software | R&D Independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, mouse |
| No.of camera | 5sets(Digital camera) |
| Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc. |
| No.of feeders station | 68PCS |
| No.of nozzles | 68PCS |
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
Why did I choose your company?
Our company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 utility patents, and 12 software copyrights. With its original solution, rigorous quality management, and perfect after-sales service system, the company has rapidly developed into a highly influential manufacturer in the field of pick and place machine equipment.
How do you guarantee product quality?
We have a dedicated department responsible for parts procurement and product quality control. Of course, your technical consultant will follow up during the entire production process. During the installation of the pick and place machine, we will have specialized engineers to perform pre commissioning to ensure product quality.
