Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | LED3014/3020/3528/5050、capacitors、resistors、bridge Rectifiers Etc |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Power Supply: | 380AC 50HZ |
| Condition: | New | Product Name: | Place Machine\ LED Mounter\LED Assembly Machine |
| Weight: | 1700kg | Mounting Speed: | 250000CPH |
| Type: | SMT Machine Related Products | Dimension: | 3100*2300*1550mm |
| Feeders: | 68 | Pcb Thickness: | 0.5~1.5mm |
| High Light: | SMT Assembly Machine For Flexible Strip,68 PCS Feeders SMT Assembly Machine,Flex Strip SMT Assembly Machine |
||
Feature Description
Mounting machine is dual arm four module,17 nozzles for each mounting part,part A or part B can be mounted separately or synchronously.
Calibration automatically,high precision,available for RGB.
Unique design components leaking detection and individual component refill function.
Intelligent electric feeder,supporting high speed mounting machine series
Flight recognition camera,no pause to detect the presence and absence of component,component adsorption state,prevent placement errors.
The clamping rod is driven by the air cylinder to correct the material taken by mounting head.
Advantages
Dual arm magnetic linear high-speed SMT machine.
Producing 4 types materials at the same time.
Vision alignment ,Mark correction.
The mounting speed can reach 250000CPH.
It can produce flexible light strips of any length.
Mounting components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers.
Parameter
| Product name | Mounting machine |

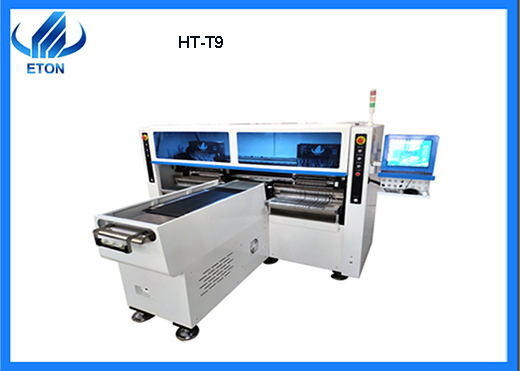

| Model | HT-T9 |
| PCB size(mm) | Max:250*any length |
| PCB thickness | 0.5-1.5mm |
| Mounting component height | ＜＝ 5 mm |
| Mounting precision | ± 0.02 mm |
| No.of camera | 5 PCS |
| No.of nozzles | 68 PCS |
| No.of feeders station | 68 PCS |
| Components | LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers. |
| Feeding way | Electric feeder with double motor |
Company
Shenzhen Eton Automation Equipment co., LTD.is a professional manufacturer of pick and place machine.Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine.Eton also has its own industrial park in Jiangxi. We are a powerful company with our own R & D production and sales.And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Certificates
Our company has obtained 9 invention patents, 12 software Copyrights and 112 practical patents
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
