Product introduce

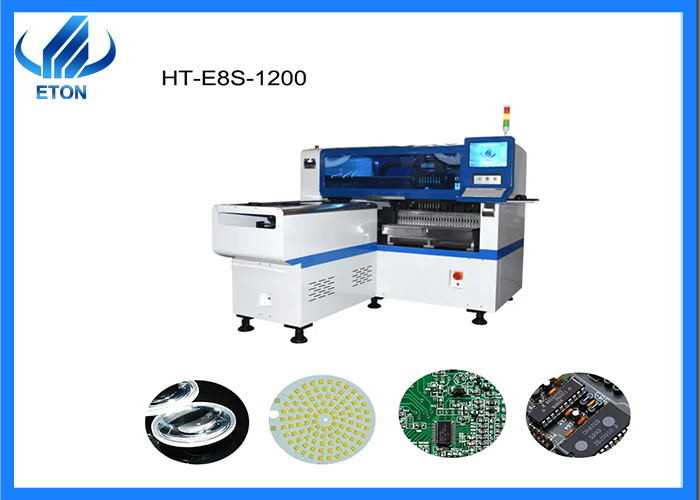

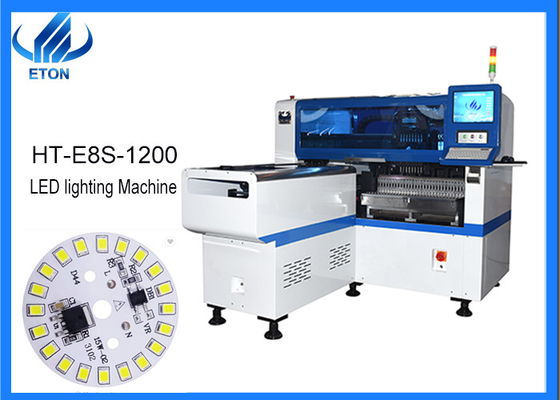

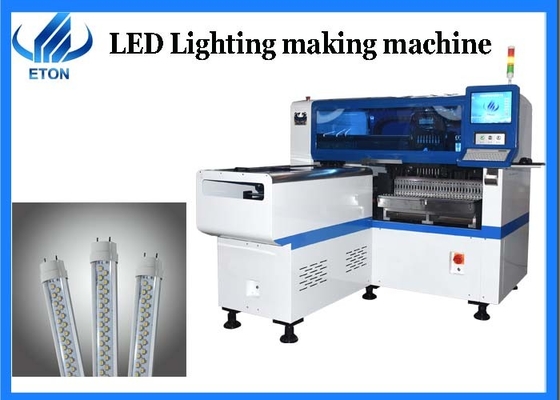

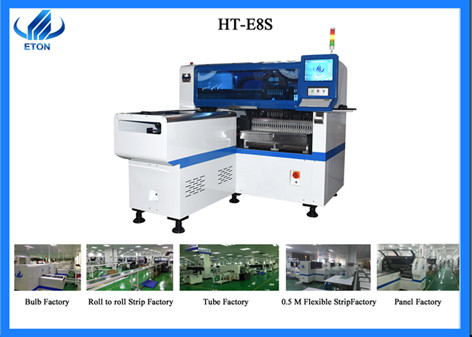

HT-E8S-1200 is a machine designed and produced by ETON with an optimum production capacity of 45000 CPH. This machine can mount large special-shaped components, such as lens, equipped with flight identification camera and Mark camera. It is suitable for mounting linear bulb, electric board ,driving, etc.
Feature
1,The x-axis enters and exits the PCB board and is pasted while entering and leaving. It adopts linear motor, servo motor and stepping motor, which has higher precision and longer service life.
2,Mark camera identification, scan the reference point of PCB board to prepare for the preparation of mounting program, and flight identification camera identifies whether there is material leakage, so as to ensure the high accuracy of mounting.
3,The single-mode group has 12 suction nozzles and 28 feeders, each head is controlled by a servo motor, The two work together. PCB boards with different angles can be mounted, such as the circular state of bulbs
Parameter
| Product name |
pick and place machine |
| Model |
HT-E8S-1200 |
| PCB size(mm) |
Max:1200*500
Min:100*100
|
| PCB thickness |
0.5-5mm |
| Mounting component height |
<15mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Systems |
Windows 7 |
| Software |
R&D independently |
Exclusive patented technology
Electronic feeder feeding system
Vision alignment flight identification,Mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated,etc
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Our Service
Global Service Office: India·Turkey·Vietnam·Egypt·Pakistan
Professional solutions: Provide professional SMT Full line solutions
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
