Product Description

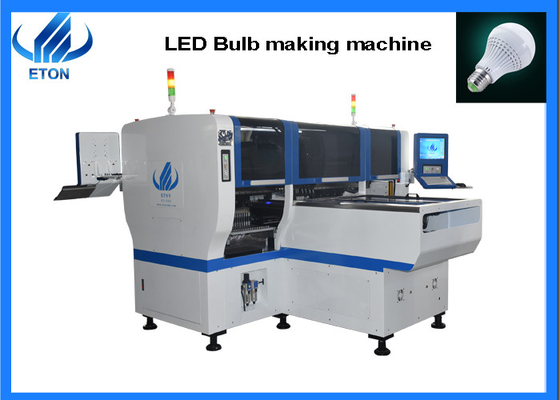

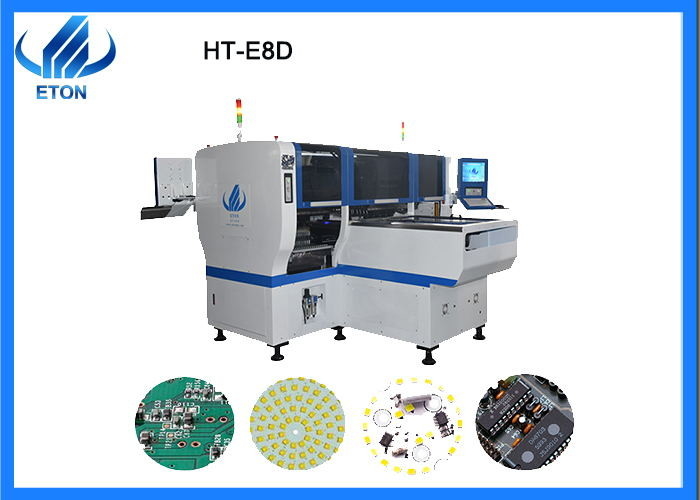

The HT-E8D-1200 is a dual module maglev multi-function high-speed pick and place machine. This model of dual module is controlled by two systems, and each module is controlled by a set of independent programs. The two modules are independent of each other, which means that two PCB can be produced simultaneously and two different products can be manufactured.
Features
Dual system, dual module multifunctional mounter. To produce two different products at same time

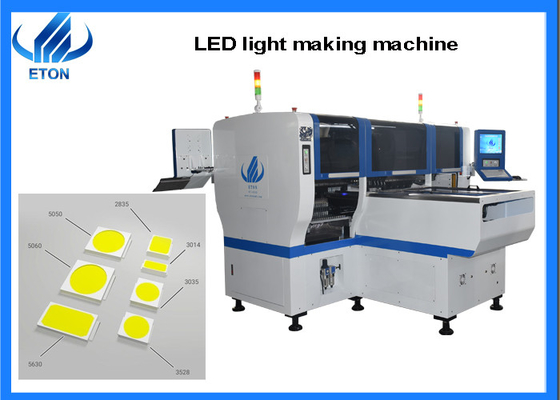

Mounting components:LED chip,capacitors, resistors,lens,IC,shaped components.etc.
component-MIN size 0404,MAX height 15mm.

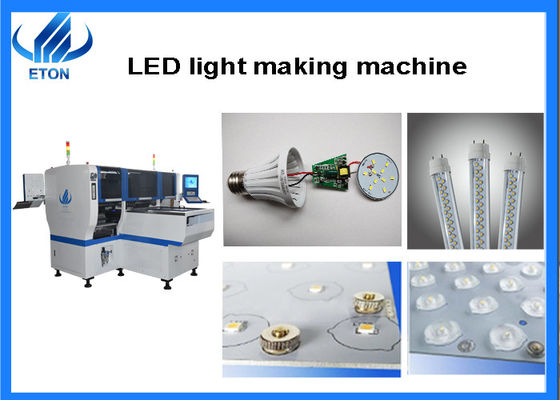

Application:power driver,electric board, lens, DOB bulb, linear bulb, household.
Exclusive patented technology:Group picking and separately placing,separately picking and separately placing.
Technical parameter
| Model |
HT-E8D |
| Length |
3150mm |
| Width |
2250mm |
| Height |
1650mm |
| Total Weight |
2500kg |
| PCB size(L* W) |
Max:1200*300mm Min；100*100mm |
| PCB Thickness |
05-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and separately placing,separately picking and separately placing |
| System |
Windows7 |
| Software |
R&D Independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, mouse |
| No.of camera |
2setsDigital camera(Digital camera) |
| Components |
LED chip,capacitors,resistors,IC,shaped components,etc. |
| No.of feeders station |
28PCS |
| No.of nozzles |
12PCS |
| Conveyor transmission |
Max Length:1200mm |
| Electrical control |
Independent research and development by ETON |
| X,Y,Z Axis drive way |
High-end magnetic linear motor +Servo motor |
| Feeding way |
Electric feeder with double motor |
After sales service
Maintenance period:1 year.
Visit customers regularly and gather information.
Provide latest information about technology and equipment.
FAQ
Q1: Is there any difference between your company's HT-E8S-1200 and HT-E8D-1200?
A: The two SMT mounter are functionally identical, except that the E8S is a single mode group SMT mounter, and the E8D is a dual mode group SMT mounter. The E8S has a production capacity of 45000 CPH, and the E8D has a production capacity of 90000 CPH, twice that of the E8S.
Q2: What are the differences between multifunctional SMT mounter and dedicated SMT mounter in the applied products?
A: The multifunctional machine is suitable for a variety of products, such as ball bubbles, display screens, drives, etc., with higher mounting accuracy, but at the same time, the mounting speed is slower compared to dedicated opportunities; The dedicated machine is mainly used for
