Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Application: | SMD Production Line | Power Supply: | 380AC 50HZ |
| Condition: | New | Weight: | 1700kg |
| Mounting Speed: | 80000cph | Dimension: | 2788*1686*1375mm |
| Feeders: | 20 | Pcb Thickness: | 0.5-4.5 Mm |
| High Light: | Bulb DOB Making Machine,20 heads DOB Making Machine,Multifunctional SMT Mounting Machine CCC |
||
Product description

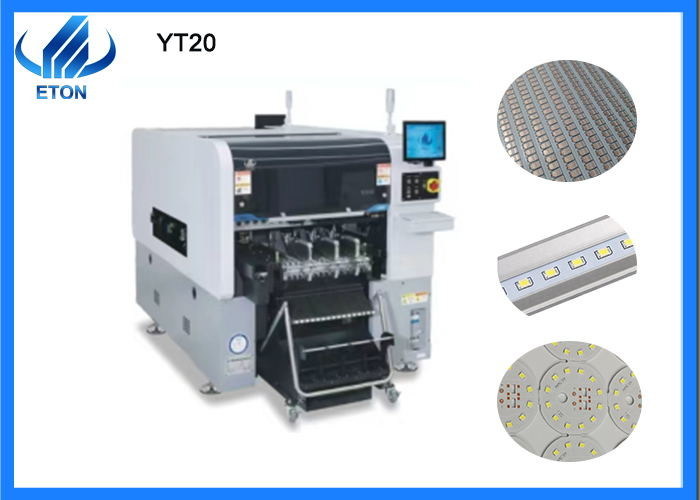

Pick and place machineYT20 is one of the newly launched YT series products from ETON. The dual-module pick and place machine can produce two identical PCB boards at the same time, improving production efficiency. Under optimal conditions, the production capacity can reach 80000CPH, and the precision is very high, and the minimum mounted components can reach 0201.
Product Parameters
| Model | YT20 |
| Length | 2788mm |
| Width | 1686mm |
| Height | 1375mm |
| Total Weight | 1700kg |
| PCB Thickness | 0.5-4.5mm |
| PCB Clamping | Cylinder clamping, track width adjustable |
| System | Windows 7 |
| Software | R&D Independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, mouse |
| No.of camera | 4 sets Digital camera |
| Components | Min 0201~40*40mm Tape reel packages and IC tray feeder etc. |
| No.of feeders station | Double side docking cart slot 32PCS,tape reel packages:64PCS |
| No.of nozzles | Double side:20pcs(single side:10pcs) |
| Power | 380AC 50HZ |
| Operating environment | 23℃±3℃ |
| Conveyor transmission | Max Length:500mm |
| Transmission speed | >500mm/sec |
| Transmission direction | Single |
| Transmission mode | Online drive |
| Position mode | Optical |
| Air supply | 0.4-0.6mpa(4-6kgf/cm )150N/min |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
| Feeding way | Electric feeder with double motor |
ETON Company

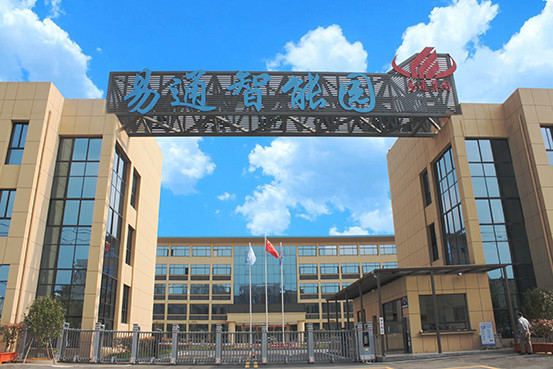

Shenzhen ETON Automation Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
ETON is not only in the leading position in the field of photoelectric high-speed placement machines, but also has made breakthrough progress in the field of SMT high-speed placement machines. It has successfully developed a variety of cost-effective SMT high-speed universal placement machines,which are widely used in lighting,LED display,electronics field,power drive, home appliances, new energy and other industries.
SMT machines packaging
All our machines will be inspected and tested again before shipment to ensure the quality of the machines. For packaging, we are also very strict in every link.
Step 1 Plastic film packing and Foam cotton packing:
Step 2 Vacuum tin foil packing:
Step 3 Stand wooden box packing:
Finally,professional industrial drivers team send the wood box to the shopping container safety.
