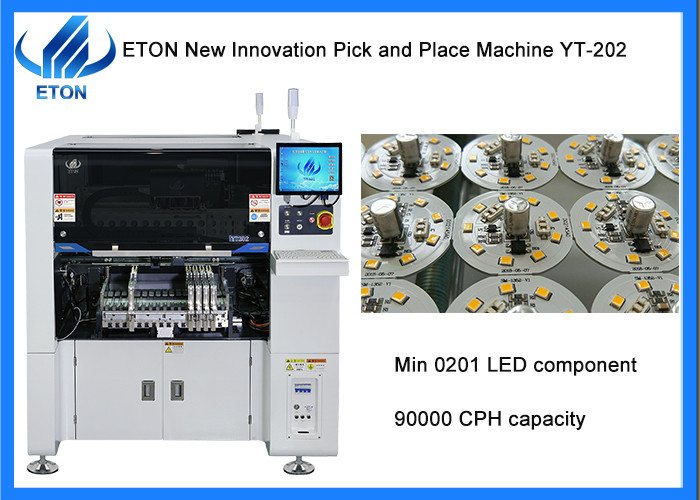

Max height 15mm DOB bulb making pick and place machine
Machine main features
- Adopt High speed multi modular head, apply to ultra small chip 0201~10 mm large chip, wider component range;
- Brand new flight vision camera: Improve recognition performance, size up to 10 mm*10 mm;
- Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
- Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach 90000 CPH;
- Brand new self-developed high precision placement head;
- Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy;
- The placement head adopt independent vacuum detection, improve placement performance;
- Off-line programming, save time of changeover cycle;
- Software AI intelligent learning function and automatic optimization function.
- Two gantry, 10 spindles*2 Gantry, total 20 spindles;
- Flexible PCB handling capabilities, double rail, both gantry can mount the same large PCB at the same time, realizing flexible production.
Machine main parameter
| Model |
YT-202 |
| PCB size |
Max size: 500*450 mm(Single side)
500*300(Double side)
Min size: 50*50 mm
|
| PCB thickness |
0.5-4.5 mm |
| PCB clamping |
Cylinder clamping, track width adjustable |
| Software |
R&D independently |
| Production management MES system |
Customized (Option) |
| Off-line programming |
Available |
| Camera |
Head flight vision recognition component
Vision alignment + Mark correction
|
| Repeat precision |
±0.02 mm |
| Mounting height |
≦15 mm |
| Position mode |
Optical |
| Optimal speed |
90000 CPH |
| Component range |
Min 0201~10 mm packages and IC etc. |
| Position mode |
Optical |
| No.of heads |
Double side:20 PCS
Single side:10 PCS
|
| Feeding way |
Intelligent double head feeder |
| X,Y,Z Axis drive way |
High end magnetic linear motor + Servo motor |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Service
- We provide whole line solution for our clients needs.
- We have some official site in India as Mumbai, Dammam and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
- As long as you buy our machine we will arrange our engineers to install debug and training for you for free, until you learned how to operate the machine.
- If necessary, Chinese engineers will come to your factory for free install and training you how to operate the machine.
- Free up-date of the machine’s software.
- We will arrange our engineers to visit your factory for check or test the status of the machine.
- If you have any problem you can contact us with any time we have 24 hours service for solving your problem on time.
