Product Details:
Payment & Shipping Terms:
|
| Mounting Capacity: | 45000CPH | Mounting Components: | Various Components |
|---|---|---|---|
| Mounting Cost: | Low Cost | Mounting Type: | Automatic |
| Product Name: | SMT Mounting Machine | X,Y,Z Axis: | Magnetic Linear Motor+ Servo Motor |
| High Light: | 1200*500mm SMT Chip Mounter,SMT Chip Mounter for LED Lighting,SMT Mounting Machine For All LED |
||

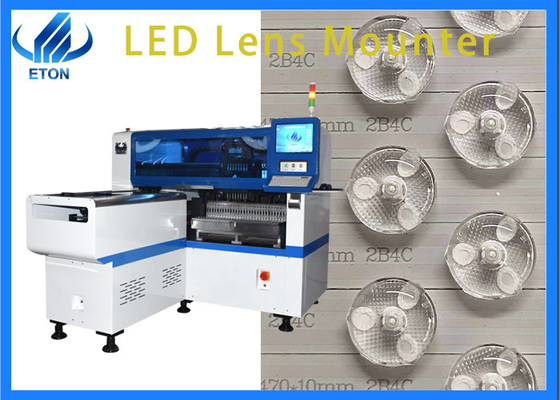

HT-E8S SMT Mounting Machine: For Bulb, Panel Lamp, strip Lamp 45000CPH mounting machine
Parameter
| PCB size | Max:1200*500mm Min: 100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Separate to pick and separate to stick |
| Mounting height | ＜15mm |
| Mounting precision | ±0.04mm |
| Mounting speed | 45000CPH |
| Components space | 0.2mm |
Product description

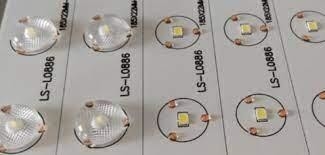

| 1. While producing a variety of PCBA, it can also mount lenses, IC and various special-shaped components.The minimum mounting components range is 0402, the maximum mounting components range is 15mm, and the maximum width span of the components is 17mm,The production capacity can reach 45000 CPH (our best conditions). |
| 2. The maximum length of guide rail transmission is 1200mm, which means that this model can be pasted with different products, ranging from 100 * 100 bulb PCB board to 1200 * 500mm LED tube PCB board. |
| 3. The single-mode group has 12 suction nozzles and 28 feeders, each head is controlled by a servo motor, The two work together. PCB boards with different angles can be mounted, such as the circular state of bulbs |
Appliance
This machine is widely used at home and abroad and is well received by customers
It is a multi-function machine, used to mount a variety of products, such as a variety of lamps, drivers, displays, lenses, circuit boards and so on.
Accurate recognition: flight recognition visual alignment, MARK correction
The size of the PCB is 1200*500, which is suitable for mounting various bulbs and lamps
Production Line
Vacuum loader/unloader:It is used for the terminal of SMT production line, retracts the multi-sided PCB
board, receives the board output signal from the host computer, receives the PCB board one by one, and
pushes the PCB into the material frame for storage.
Automatic printer machine:A device that leaks solder paste to the PCB board to prepare for the soldering
of components.
Single conveyor:For connection between SMT production lines, it can also be used for PCB buffering, inspection,
testing or electronic component insertion.
Pick and place machine:Accurately mount surface mount components to fixed locations on the PCB
Reflow zone:Melt the solder paste to firmly bond the surface mount components to the PCB
Company Profile
1.ETON has a more than 10 years history in the SMT machine industry.
2.ETON is the No. 1 brand of pick and place machines in China .
3.The fastest speed reaches 500000 CPH and the precision reaches 0201mm.
4.Provide free software update lifetime
5.we can provide a whole SMT production line
6.Has an industrial park of 52000 square meters that can be controlled the quality from the source
FAQ
1:Are you a factory or trading company?
A:We are a professional manufacturer of mounter.And we have our own brand mounter production line.
2:Do you provide installation service?
A:We have engineer in India, Turkey, Egyp.
3:What is your delivery date?
The delivery date is about 20 days upon the full payment.
4:Does the price include nozzles and feeders?
A:We don't include nozzles and feeders,because each customer requires different nozzles and feeders.
5:Does your company only buy Mounter?
A;We also provide Send board machine ,pcb un-loader, convery, semi-automatic stencil printe and automatic
stencil printe.
