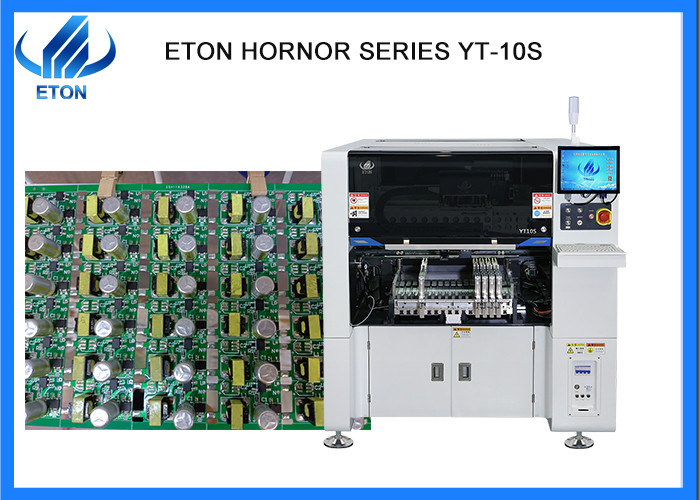

Hot type vision alignment flight identification 45000CPH LED SKD placement machine
Machine main features
- Single module magnetic linear motor multifunctional pick and place machine
- Mounting components: LED Chip, Capacitor, Resistor, Lens, IC, Shaped components, etc.
- Support YT series double head intelligent electric tape reel feeder, by optically correcting the feeding position of the component, it can achieve stable, High accurate and high-speed feeding.
- High precision vision alignment flight identification, auto-optimization after coordinates generated, etc
- Option: Fix flight vision recognition camera.
Machine main parameter
| Model |
YT-10S |
| PCB size |
Max size: 500*350 mm
Min size: 50*50 mm
|
| PCB thickness |
0.5-4.5 mm |
| PCB clamping |
Cylinder clamping, track width adjustable |
| Software |
R&D independently |
| Production management MES system |
Customized (Option) |
| Off-line programming |
Available |
| Camera |
2 sets of digital camera, Vision for the flight identification, Mark correction |
| Repeat precision |
±0.02 mm |
| Mounting height |
≦15 mm |
| Optimal speed |
45000 CPH |
| Component range |
Min 0201~40*40 mm packages and IC etc. |
| Position mode |
Optical |
| No.of heads |
10 PCS |
| Feeding way |
Electric feeder with double motor |

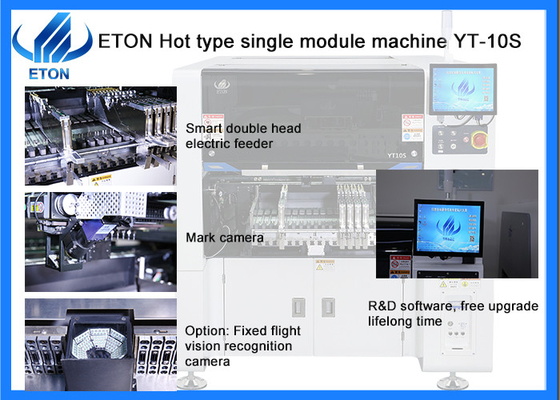

Machine main part
Our advantage
ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
Packages
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Software lifetime upgrade
24 hours to deal with problems online
Engineers can arrive on site to teach operation and debug the machine
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
FAQ
Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
