Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Application: | LED Lights, Electrical Products, Household Appliance |
---|---|---|---|
Power Supply: | 380AC 50HZ | Condition: | New |
Product Name: | Automatic SMT Pick And Place Machine | Weight: | 1700KG |
Mounting Speed: | 80000 CPH | Dimension: | 2788*1686*1375mm |
High Light: | 80000 Capacity SMT Placement Machine,SMT Placement Machine With Linear Motor,SMT Placement Machine With Magnetic Motor |

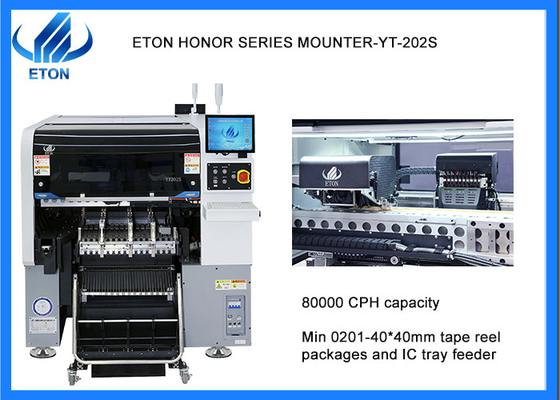

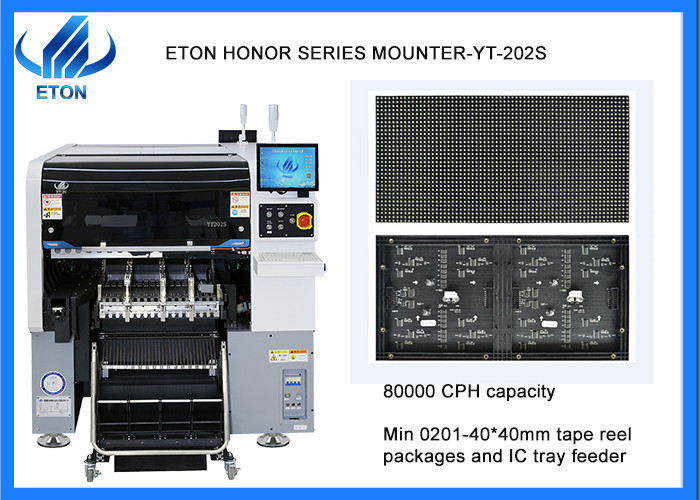

Magnetic linear motor 80000 capacity SMT placement machine
Description
Machine main parameter
Model | YT-202S |
PCB size |
Max size: 500*450 mm(Single side) 500*300 mm(Double side) Min size: 50*50 mm |
PCB thickness | 0.5-4.5 mm |
Rail | 2 rail, 2 gantries(rail 1,4 are fixed rail) |
Camera | Bottom vision camera recognition, Vision alignment + Mark camera |
PCB clamping | Cylinder clamping, track width adjustable |
Software | R&D independently |
Production management MES system | Customized (Option) |
Off-line programming | Available |
Camera |
Head flight vision recognition component Vision alignment + Mark correction |
Repeat precision | ±0.02 mm |
Mounting height | ≦15 mm |
Optimal speed | 80000 CPH |
Component range | Min 0201~40*40 tape reel packages and IC tray feeder etc. |
Position mode | Optical |
No.of heads |
Double side: 20 pcs Single side:10 pcs |
Feeding way | Intelligent double head feeder |
X,Y,Z, Axis drive way | High-end magnetic linear motor + Servo motor |
Machine main part
SMT Line solution
Market
As for the 11 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:
Our Exhibitions
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Shipping and Delivery
We usually transport the goods to the port in containers and then ship them to the destination. For the transportation of machines, land transportation and air transportation are also possible.
FAQ
Q. If I need a perfect line of the machine can you supply?
A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
Q. How is the differences of your multifunctional machine and high-speed machine?
A. The mounting mode of multifunctional and high speed machine which decides the range of their mounting products, and the mounting capacity is to distinguish this two types of the machine, such as multifunctional pick and place machine RT-1 with capacity of 40000 CPH, while high speed mounter machine HT-T9 with 250000 CPH capacity.
