Product Details:
Payment & Shipping Terms:
|
Name: | SMT Automatic Pick And Place Machine | Application: | LED Lights, Electrical Products, Household Appliance |
---|---|---|---|
Warranty: | 1 Year | Power Supply: | 380AC 50HZ |
Condition: | New | Weight: | 1700KG |
Mounting Speed: | 80000 CPH | Dimension: | 2788*1686*1375mm |
High Light: | Electric LED SMT Mounter,LED Products SMT Mounter,Double Module Head SMT Placement Machine |

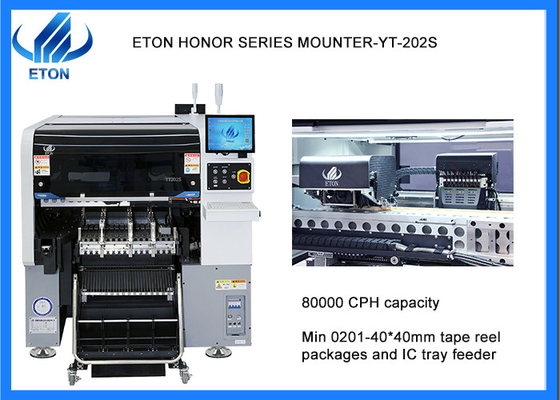

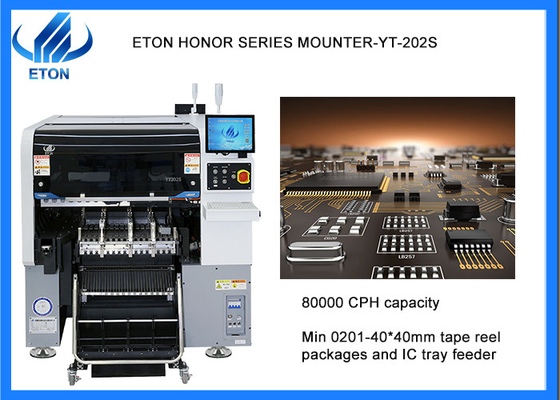

Electric LED products double module placement machine
Description
Machine main parameter
Model | YT-202S |
PCB size |
Max size: 500*450 mm(Single side) 500*300 mm(Double side) Min size: 50*50 mm |
PCB thickness | 0.5-4.5 mm |
Rail | 2 rail, 2 gantries(rail 1,4 are fixed rail) |

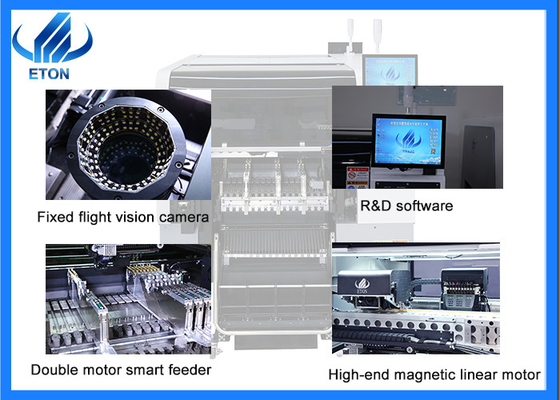

Camera | Bottom vision camera recognition, Vision alignment + Mark camera |
PCB clamping | Cylinder clamping, track width adjustable |
Software | R&D independently |
Production management MES system | Customized (Option) |
Off-line programming | Available |
Camera |
Head flight vision recognition component Vision alignment + Mark correction |
Repeat precision | ±0.02 mm |
Mounting height | ≦15 mm |
Optimal speed | 80000 CPH |
Component range | Min 0201~40*40 tape reel packages and IC tray feeder etc. |
Position mode | Optical |
No.of heads |
Double side: 20 pcs Single side:10 pcs |
Feeding way | Intelligent double head feeder |
X,Y,Z, Axis drive way | High-end magnetic linear motor + Servo motor |
Machine application
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
Service
Free Installation: provide free installation machine to ensure smooth production
Free Warranty:1 year warranty factory service, free replacement of space parts
Free Training: Professional training of operating and maintenance
Free Technical Support: 7*24 technical online support
Free Software Upgrade: Offer free software upgrade whole lifetime
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q. How many components can your pick and place machine mount in a PCB board?
A. While this is for our clients needs and the size of the PCB board.
