| Warranty: | 12 Months | Name: | YT-202S |
|---|---|---|---|
| Application: | LED Lights, Electrical Products, Household Appliance | Power Supply: | 380AC 50HZ |
| Condition: | New | Product Name: | Automatic SMT Pick And Place Machine |
| Weight: | 1700KG | Mounting Speed: | 80000 CPH |
| Dimension: | 2788*1686*1375mm | ||
| High Light: | SMT Mounter with multi modular head,500mm Max Pick And Place Machine,SMT Mounter with Flight Vision Camera |
||
500mm Max PCB flight vision camera surface mounted pick and place machine
Description
Adopt High speed multi modular head, apply to ultra small chip 0201~40*40 mm large chip, wider component range;
Brand new flight vision camera: Improve recognition performance, size up to 40*40 mm, apply to BGA or CSP etc;
Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach 80000 CPH;
Brand new self-developed high precision placement head;
Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy;
The placement head adopt independent vacuum detection, improve placement performance;
Off-line programming, save time of changeover cycle;
Software AI intelligent learning function and automatic optimization function.
Two gantry, 10 spindles *2 Gantry, total 20 spindles;
Flexible PCB handling capabilities, double rail, both gantry can mount the same large PCB at the same time, realizing flexible production.
|
Model |
YT-202S |
|
PCB size |
Max size: 500*450 mm(Single side) 500*300 mm(Double side) Min size: 50*50 mm |
|
PCB thickness |
0.5-4.5 mm |
|
Rail |
2 rail, 2 gantries(rail 1,4 are fixed rail) |
|
Camera |
Bottom vision camera recognition, Vision alignment + Mark camera |
|
PCB clamping |
Cylinder clamping, track width adjustable |
|
Software |
R&D independently |
|
Production management MES system |
Customized (Option) |
|
Off-line programming |
Available |
|
Camera |
Head flight vision recognition component Vision alignment + Mark correction |
|
Repeat precision |
±0.02 mm |
|
Mounting height |
≦15 mm |
|
Optimal speed |
80000 CPH |
|
Component range |
Min 0201~40*40 tape reel packages and IC tray feeder etc. |
|
Position mode |
Optical |
|
No.of heads |
Double side: 20 pcs Single side:10 pcs |
|
Feeding way |
Intelligent double head feeder |
|
X,Y,Z, Axis drive way |
High-end magnetic linear motor + Servo motor |

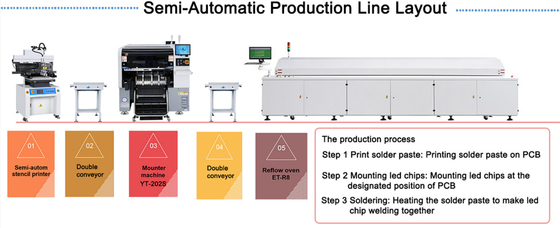

SMT Line solution
