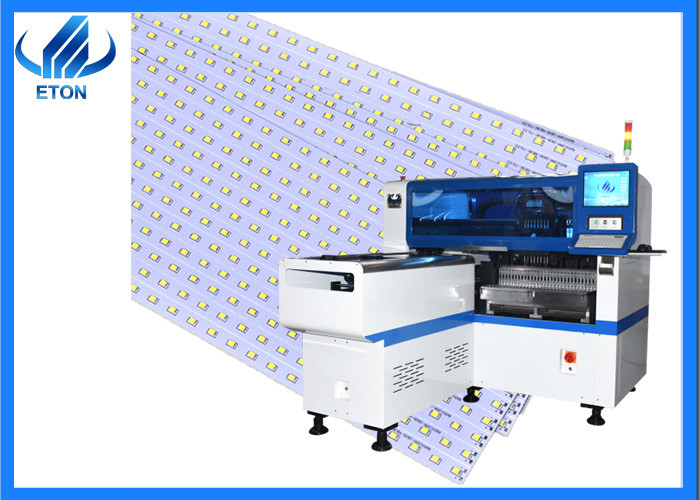

45000CPH PCB Assembly Machine Vision Alignment Flight Identification SMT Mounting Machine

SMT Mounting Machine with Vision Alignment Flight Identification 45000CPH PCB assembly machine

Technical parameter

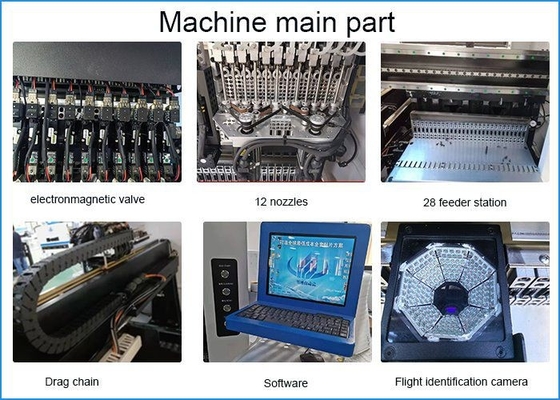

Machine main features

• Single module magnetic linear motor multi-functional pick and place machine.
• Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
• Component: Min. Size 0402, Max. Height 15 mm.
• Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

Exclusive Patented Technology:

• Electronic feeder feeding system.
• Vision alignment flight identification, Mark correction.
• Non- stop material re-loading function.
• Auto-optimization after coordinates generated, etc.

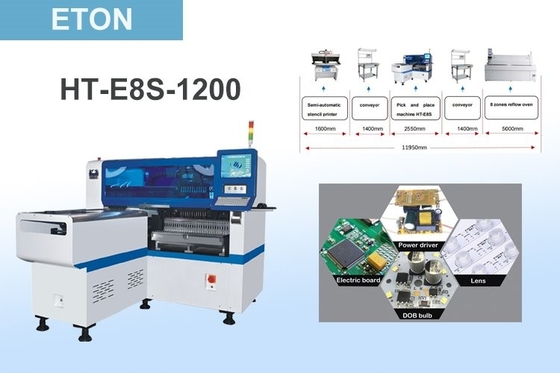

SMT Line solution

A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.

The blowing is the function of each machine:

1. Semi auto stencil printer is aim of leaking solder paste or patching adhesive onto the solder pad of PCB to prepare for the welding of components;
2. Pick and place machine is to mount light beads or other surface mounted components at the designated position of PCB board；
3. Reflow oven is to melt the solder paste to fix and bond the components and PCB board.
4. Conveyor is used for the connection between SMT production lines, as well as buffering, testing, testing PCB boards or manual plug-in of electronic components;

Company introduction

Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.

ETON is the leading manufacturer of global opto-electronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. ETON obtains a number of intellectual property technologies, including 9 invention patent, 112 practical patents, 12 software copyrights.

FAQ

Can I use CIF price?

CIF price need add the freight, insurance fee on the basis of EXW price, and the India delivery forwarder will charge ours more than yours. So actually to do EXW will more simple and save cost for you.

This is the first time I use this kind of machine, is it easy to operate?

It is easy to operate, the language of the machine is English, and we will teach you the basic operation.

Does the price include the spare parts(feeder and nozzle)?
Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.

What’s the terms of payment? What about the trade term?

T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
