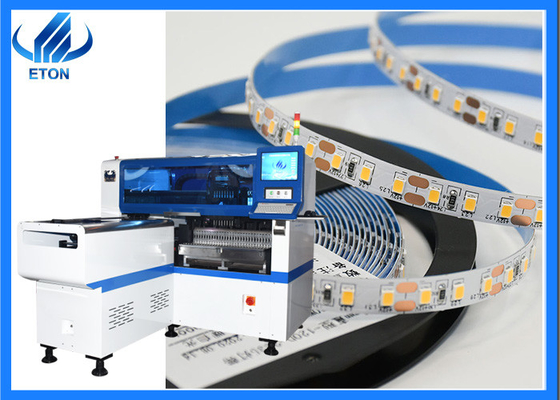

magnetic linear motor SMT Mounting Machine 45000CPH PCB Assembly Machine With 10 Head

SMT Mounting Machine with Vision Alignment Flight Identification 45000CPH PCB assembly machine

Technical parameter

Machine main features

• Single module magnetic linear motor multi-functional pick and place machine.
• Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
• Component: Min. Size 0402, Max. Height 15 mm.
• Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

Exclusive Patented Technology:

• Electronic feeder feeding system.
• Vision alignment flight identification, Mark correction.
• Non- stop material re-loading function.
• Auto-optimization after coordinates generated, etc.

SMT Line solution

Vacuum loader/unloader:It is used for the terminal of SMT production line, retracts the multi-sided PCB

board, receives the board output signal from the host computer, receives the PCB board one by one, and

pushes the PCB into the material frame for storage.

Automatic printer machine:A device that leaks solder paste to the PCB board to prepare for the soldering

of components.

Single conveyor:For connection between SMT production lines, it can also be used for PCB buffering, inspection,

testing or electronic component insertion.

Pick and place machine:Accurately mount surface mount components to fixed locations on the PCB

Reflow zone:Melt the solder paste to firmly bond the surface mount components to the PCB

Company introduction

Company Profile

1.ETON has a more than 15 years history in the SMT machine industry.

2.ETON is the No. 1 brand of pick and place machines in China .

3.The fastest speed reaches 500000 CPH and the precision reaches 0201mm.

4.Provide free software update lifetime

5.we can provide a whole SMT production line

6.Has an industrial park of 52000 square meters that can be controlled the quality from the source

Market

As for the 15 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:

SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, CENTURY LED, AUTOPAL, SKYQUAD, NTL, KONARK, CEPL, FLARE, ACK, KENDAL, KING LED, RangDong, TAMKIM, UNISTAR , SKY INDUSTRIES, etc.

Service

Maintenance period 1 year

• One year warranty, during warranty, any parts that need to be repaired and replaced will be free

Software and hardware lifetime maintenance

• Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates

Visit customers regularly and gather information

• Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time

Provide the latest information about technology and equipment

• We give professional technology suggestions to our clients. And share the updated news with our clients

On-site service

• We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers.
• According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.

FAQ

Q. How can I look around your industrial park if I am on aboard?

A. If you have Chinese agent we can make an appointment to show you the environment, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.

Q. How many products can your machine make per day?

A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.

Q. How many components can your pick and place machine mount in a PCB board?

A. While this is for our clients needs and the size of the PCB board.
