Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Applicable Components: | 0402 |
---|---|---|---|
Condition: | New | Usage: | Circuit Board Assembly,SMT Mounting Machine,LED |
Mounting Speed: | 45000 CPH | Mounting Head: | 10 Heads |
High Light: | 0402 SMT Mounting Machine,45000CPH PCB Assembly Machine,SMT Mounter With 10 Head |

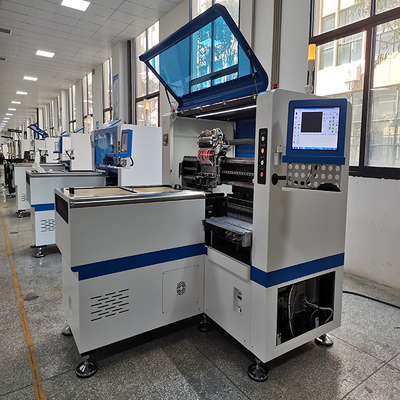

SMT Mounting Machine with 45000CPH with 10 head PCB assembly machine
Technical parameter
Model | HT-E8S-1200 |
Dimension | 2550 mm*1650 mm*1550 mm |
Total weight | 1700 kg |
PCB length width |
Max:1200*500 mm Min:100*100 mm |
PCB thickness | 0.5-5 mm |
Mounting precision | ±0.04 mm |
Mounting Speed | 45000CPH |

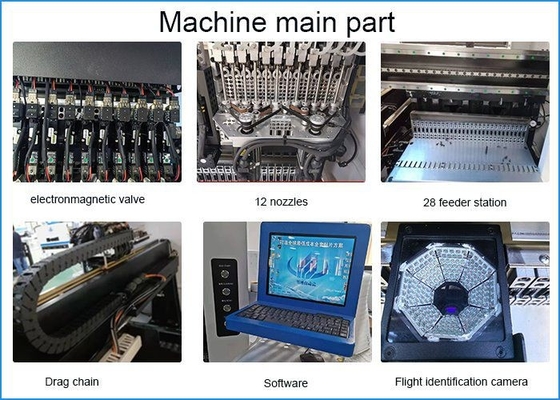

Machine features
Single module magnetic linear motor multifunctional pick and place machine.
Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components etc.
Components: min size 0402, max height 15mm
Application:power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
Electronic feeder feeding system
Vision alignment flight identification, mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated etc.
SMT Line solution
Vacuum loader/unloader:It is used for the terminal of SMT production line, retracts the multi-sided PCB
board, receives the board output signal from the host computer, receives the PCB board one by one, and
pushes the PCB into the material frame for storage.
Automatic printer machine:A device that leaks solder paste to the PCB board to prepare for the soldering
of components.
Single conveyor:For connection between SMT production lines, it can also be used for PCB buffering, inspection,
testing or electronic component insertion.
Pick and place machine:Accurately mount surface mount components to fixed locations on the PCB
Reflow zone:Melt the solder paste to firmly bond the surface mount components to the PCB
Company introduction
Package
Step 1 : wrap with stretch film to prevent the equipment from
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation
Step 4: each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Market
As for the 15 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, CENTURY LED, AUTOPAL, SKYQUAD, NTL, KONARK, CEPL, FLARE, ACK, KENDAL, KING LED, RangDong, TAMKIM, UNISTAR , SKY INDUSTRIES, etc.
Service
Maintenance period 1 year
Software and hardware lifetime maintenance
Visit customers regularly and gather information
Provide the latest information about technology and equipment
On-site service
FAQ
What is your machines quality?
We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality.
How many hours does the machine can operate per day?
Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Why choose us?
We are the leading manufacturer of global optoelectronic high-speed pick and place machine, we have more than 10 years experience, Independent offices have been set up in India, Turkey, Egypt and other countries to provide better services.
Can we customize the machine?
Of course, all of our machines can be customize.
How is the transportation?
By sea, by air and land transportation.
