Name: | SMT Pick And Place Machine,LED Bulb Mounting Machine,LED Chip Mounter,PCB Pick And Place Robot Machine SMD LED Mounting Machine | Weight: | 1700KG |
---|---|---|---|
PCB Size: | 100*100-1200*500mm | Precision: | ±0.02mm |
Applicable Components: | 0402,SOP,LED 2121/2727/3528/3535/5050 Etc,Etc | PCB Thickness: | 0.5-5.0mm |
Mounting Mode: | Full-Automatic | Mounting Height: | 15mm |
Capacity: | 45000cph | Power Supply: | 220V/50HZ |
Warranty: | 1 Year | Feeder: | Electronic Feeder |
High Light: | LED Mounting Machine for PCB,LED Mounting Machine 45000cph Capacity,High Precision PCB LED Mounting Machine |
Platform drive adopts servo motor from Japan, and lead screw with linear guide rail to ensure the stability and control accuracy of platform movement.
The X and Y axis adopt high-end magnetic linear motors to ensure the high accuracy, speed and stability of the patch.
16 high-speed heads work at the same time, greatly improving the cost performance of the equipment. The suction head movement has highly precise operation, and is durable as well.
Industrial computer + independent special controller control is used to control the device which has great system stability and is simple to operate, easy to learn.
The software adopts the database system, different kinds of PCB programming can be stored, easy to call, new product programming, lifelong call.
Optionally, 8mm, 12mm, 16mm and 24mm automatic feeder; different suction nozzle; high temperature placement head for lead-free welding etc. can be added.
Specification | Details |
---|---|
Product Name | LED Mounting Machine |
Precision | ±0.02mm |
Mounting Direction | Right To Left Or Left To Right |
PCB Thickness | 0.5-5.0mm |
Mounting Mode | Full-Automatic,45000CPH |
Mounting Range | 0402, Led Chips, Resistor, Capactors, Etc |
Weight | 1700KG |
PCB Size | 100*100-1200*500mm |
Mounting Head | 12 Heads |
Power Supply | 220V/50HZ |

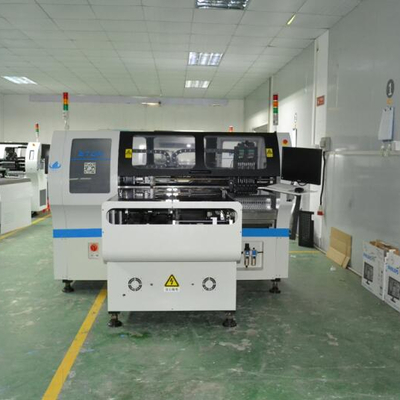

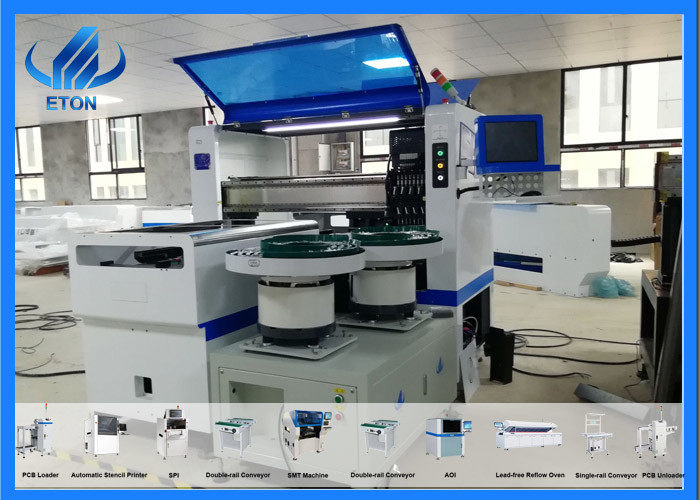

The Mounting Machine for LED from ETON with model number HT-E8S-1200 is a perfect choice for any LED mounting needs. It is certified by CE, CCC and SIRE, and comes with a minimum order quantity of 1 at a price range of USD30000~70000. It is securely packaged in wooden cases and is shipped within 30 days after payment is received via T/T or LC. The machine has an impressive supply ability of 50 per month and a mounting height of 15mm. It is powered by 220V/50HZ and is suitable for PCBs with sizes of 100*100-1200*500mm, weighing 1700KG. It is a full-automatic machine that offers excellent convenience and precision.
We offer comprehensive technical support and service for our LED Mounting Machine product. Our technical support team is available to answer any questions you may have about installation, operation, troubleshooting, and maintenance of your LED Mounting Machine.
We also offer a wide range of services, including:
If you need help with your LED Mounting Machine, contact our technical support team and we'll be happy to help you.
