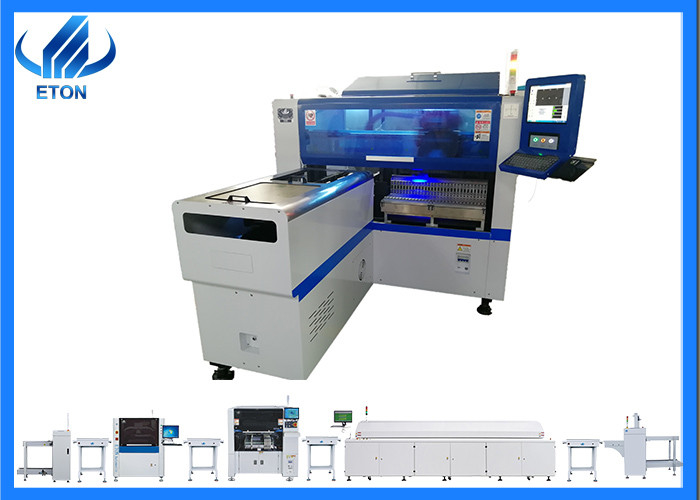

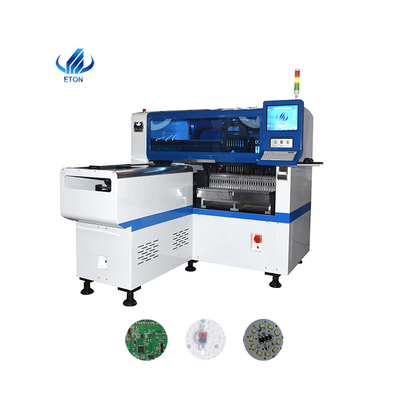

High-Precision Performance 12 Heads LED Mounting Machine for Industrial Automation

Product Description:

The platform drive features a servo motor imported from Japan, as well as a reliable lead screw and linear guide rail. These components work together to maintain the stability and control accuracy of platform movement.

The X and Y axes both make use of high-end magnetic linear motors, which ensures outstanding accuracy, speed, and stability when placing components on the patch.

The use of 16 high-speed heads at the same time results in greater cost performance, especially when it comes to suction head movement where accuracy and long durability are required.

The industrial computer + independent special controller ensures consistently stable system performance with its easy to learn operations. The database system integrated into the software makes it easier for users to store and recall different kinds of PCB programs, even for new products programming.

Depending on your needs, you can opt for 8mm, 12mm, 16mm, and 24mm automatic feeders, as well as different suction nozzles for various patch components.

Features:

1. Platform drive adopts servo motor from Japan, and lead screw with linear guide rail to ensure the stability and control accuracy of platform movement.

2.The X and Y axis adopt high-end magnetic linear motors to ensure the high accuracy, speed and stability of the patch.

3. 16 high-speed heads work at the same time, greatly improving the cost performance of the equipment. Suction head movement, high precision, long durability.

4.Use of industrial computer + independent special controller control, system stability, simple operation, easy to learn.

5.The software adopts the database system, different kinds of PCB programming can be stored, easy to call, new product programming, lifelong call.

6.Optional: 8mm, 12mm, 16mm and 24mm automatic feeder; Different suction nozzle

Technical Parameters:

Applications:

ETON HT-E8S-1200 Automatic LED Mounting Machine is an excellent choice for those who want to save time and money in the production of LED products. It has CE,CCC,SIRE certification, and the minimum order quantity is 1. The price of ETON HT-E8S-1200 Automatic LED Mounting Machine is between USD30000~70000. The package is wooden case and the delivery time is 30 days. The payment terms are T/T,LC. The supply ability is 50/per mounth. Its precision is ±0.02mm, mounting height is 15mm, mounting head is 12 heads and mounting mode is full-automatic. This Automatic LED Mounting Machine is ideal for LED production line. It can greatly improve the production efficiency and reduce labor costs. The Automatic Mounting Machine is easy to operate and maintain, which can help you to reduce production costs. The Automatic LED Mounting Machine is suitable for all kinds of LED products.

This multifunctional pick and place machine for led bulbs,DOB,Street light,panel light,etc

Support and Services:

Professional Technology:10 year manufacturer of SMT machineR&D indenpendently
Free Software Upgrade:Offer free software upgrade whole lifetime
Professional Solutions:provide professional SMT full line Solutions
Free Warranty&Free Technical Support:one year warranty factory service and 7*24 hours technical online support
Free Installation:On-site free installation to ensure smooth production
Free Technical Training:professional training of operating and maintenance
