Product Details:
Payment & Shipping Terms:
|
Name: | Pick And Place Machine/SMT Mounter/led Mounter | Model: | HT-F7S |
---|---|---|---|
Warranty: | 1 Year | Mounting Speed: | 180000 CPH |
Usage: | SMT Mounting Machine,LED | Locan Service: | India, Egypt, Turkey, Vietnam |
Industrial Park Area: | 52000 Square Meter | Office Area: | 3000 Square Meter |

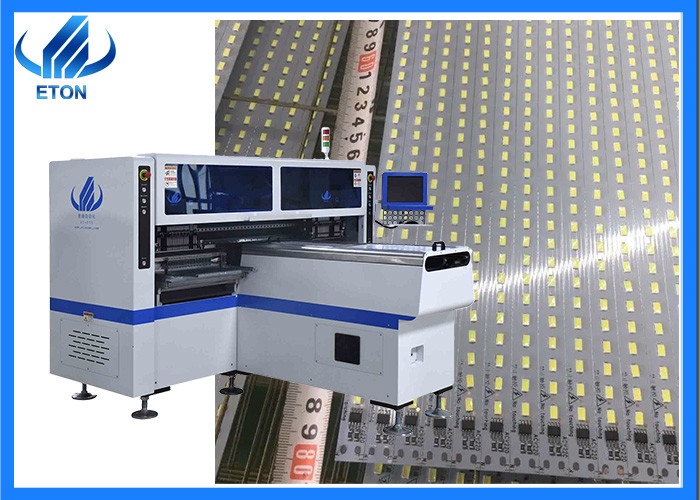

180000CPH SMT Mounting machine 34 heads surface mount placement machine
Technical parameter
PCB thickness | 0.5-5mm |
PCB clamping | Adjustable pressure pneumatic |
No.of camera | 5 PCS |
Repeating precision | ±0.02mm |
Power consumption | 6KW |
Power | 380AC50Hz |
Mounting speed | 150000CPH – 180000CPH |
Components space | 0.5mm |
Product description
1. In the design of this model, in order to improve the production capacity, 34 suction nozzles and 68 feeders seats are designed. The mechanical arms of the two groups of suction elements move on the same track, making its maximum production capacity exceed 150000 CPH, can reach 180000CPH |
2. A plate of materials can be pasted separately, or 2-4 kinds of raw materials can be pasted at the same time, and the ingredients can be programmed according to the customer’s PCB design. |
3. The application software of mounter is independently developed by ETON. It is not only easy to learn, but also can be updated free of charge and guaranteed for life |
Service
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
FAQ
Q:How are your products packaged?
A:All machines are packed with vacuum and wooden packing like the one in the pictures.
Q:I’d like to know how your machines are transported?
A:We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. — Sea shipping for machine.
Q:What are your advantages over other companies?
A:As a global leading brand of photoelectric high-speed mounter and a pioneer enterprise of SMT Mounter in China, ETON’S products are exported to more than 20 countries and regions such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil and Iran. It has independently developed the world’s first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents. It has successively won the titles of “Shenzhen high tech enterprise”, “Guangdong high tech enterprise”, “national high tech enterprise” and “Shenzhen famous”
Clients Projects
100M Strip Light SMT Production Line
ETON helped the client to plan the 100M production line, including the patch production
line: PCB loader-semi-automatic printing machine-The buffer stage-high-speed pick and place machine - 24M assembly line - reflow oven - PCB unloader, and also planned 24M test line, sub-board line, coating production line. The client put into production in 2021, and the production situation is very good. ETON technicians installed the machine in the client's factory, planned the wiring, tested the production, and trained the client's engineers. The client's project was very successful, becoming one of the few in India that can provide 100M without wires. The factory for the production of all flexible light strips is very competitive, and now is planning add a new SMT production line with ETON to expand production and LED product categories.
