Product Details:
Payment & Shipping Terms:
|
| FPCB Min Size: | 50MM | FPCB Max Size: | 260MM |
|---|---|---|---|
| FPCB Thickness: | 0.5-5MM | FPCB Warpage: | Max. FPCB Diagonal 1％ |
| Transport Direction: | Left-Right | Transport Height: | 900±40mm |
| Squeegee Speed: | 6~300mm/sec | Squeegee Type: | Stainless Steel(Standard), Plastic |

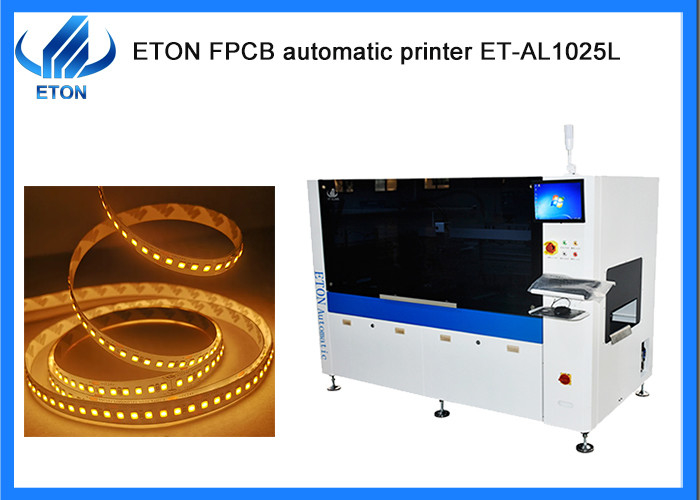

Automatic printer vision alignment system for LED FPCB board printing
Machine configuration
● Programmable suspension printing head;
*Two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material;
*Effectively control the stroke, improve the printing efficiency, and prevent the leakage of solder paste;
● Standard stainless steel scraper, unique design, improve the service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating system;
● Built-in software diagnostic system;
● SMEMA interface.
Technical parameter
| Screen Frames | Min Size | 850mm |
| Max Size | 550mm | |
| Thickness | 25~45mm | |
| FPCB Min Size | 50mm | |
| FPCB Max Size | 260mm | |
| FPCB Thickness | 0.5~5mm | |
| FPCB Warpage | Max. FPCB diagonal 1％ | |
| Transport Height | 900±40mm | |
| Transport Direction | Left-Right | |
| Transport Speed | Max 1000mm/S Programmable (Adjustable) | |
| Board Location | Support System | Platform jacking tension |
| Clamping System | Edge clamp fixed | |
| Print head | Two independent motorized print heads | |
| Squeegee Speed | 6~300mm/sec | |
| Squeegee Pressure | 0~10Kg/cm2 | |
| Squeegee Angle | 55°(Standard) | |
| Squeegee Type | Stainless steel(Standard), plastic | |
| Stencil Separation Speed | 0.1~20mm/sec Programmable | |
| Cleaning System | Manual cleaning | |
| Table Adjustment ranges | X:±5mm;Y:±5mm;θ:±2° | |
| Machine | ||
| Repeat Position Accuracy | ±0.01mm | |
| Printing Accuracy | ±0.025mm | |
| Cycle Time | ≤9s (Exclude Printing & Cleaning) | |
| Air Required | 4.5~6Kg/cm2 | |
| Power Input | AC:220±10%,50/60HZ 1Φ 1.5KW | |
| Control Method | PC Control | |
| Machine Dimensions | 1754(L)X1249(W)X1600(H)mm | |
| Machine Weight | Approx:600Kg | |
| FPCB transport over plate height | 20mm | |
Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 30 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Software lifetime upgrade
24 hours to deal with problems online
Engineers can arrive on site to teach operation and debug the machine
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q. How many components can your pick and place machine mount in a PCB board?
A. While this is for our clients needs and the size of the PCB board.
Q. How many products can your machine make per day?
A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
