Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Reflow Oven Machine |
|---|---|---|---|
| Starting Power: | 90KW | Condition: | New |
| Product Name: | ET-R10 | Weight: | 2200kg |
| Dimension: | L5800*1400*1600MM | PCB Size: | 50-700mm |
| High Light: | 700MM mesh belt reflow oven machine,SMT mesh belt reflow oven machine,Mesh Belt SMT reflow oven machine |
||

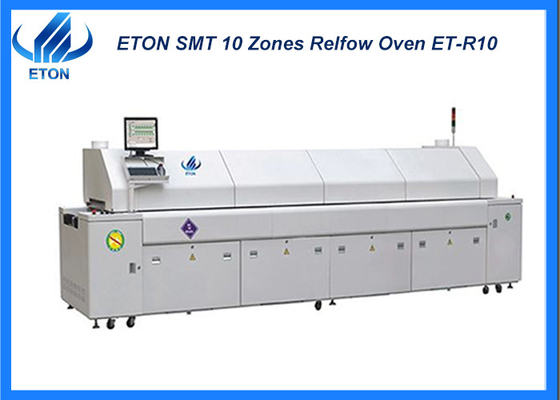

10 zones SMT 700MM mesh belt reflow oven machine
Description
Cooling and convenient flux recovery system
1. The forced cooling system adopts two-stage forced air cooling temperature zone to meet the lead-free process; the cooling curve is smooth, without abrupt change, full heat exchange, the slope can be controlled by frequency conversion, the tin point is smooth and bright, and the maximum cooling rate can reach -5℃ /S.
2. The flux collection system can keep the furnace clean for a long time, and the exhaust gas emission is more environmentally friendly. The gas separated in the nitrogen furnace can be recycled to save nitrogen.
3. No filter element design, easy to clean.
Machine main parameter
| Technical parameter: | |
| NO. of heating zone | 10 hot air circulation heating zones on the top and 10 hot air circulation heating zones on the bottom. |
| heating method | Flat-wound heating wire on both sides, pressurized air duct, point-to-point variable frequency motor heat exchange method, variable frequency motor drive |
| Length of heating zone | 3900MM |
| NO. of cooling zone | 2(Natural air cooling system) |
| Length of cooling zone | 1100MM |
| Conveyor belt width | 700MM |
| PCB size | 50-700mm |
| PCB height | Up:25mm down:20mm max:45mm |
| Transport direction | left-right(right-left) Optional |
| Delivery method | Mesh belt +Chain |
| Conveyor belt height | 900±20MM |
| PCB transportation speed | 0～1.8m/min |
| PCB temperature deviation | ±2℃ |
| Temperature control method | ±1-2℃(Static) |
| Starting power | 90KW |
| Working power | 20KW |
| Heating time | Approx.20min |
| Machine dimensions(L*W*H) | L5800*1400*1600MM |
| net weight | 2200kg |
SMT Line solution
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Shipping and Delivery
As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
Related machine
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
FAQ
Q. What is your machines quality?
A. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q. What services can you provide?
A.
1)We provide whole line solution for our clients;
