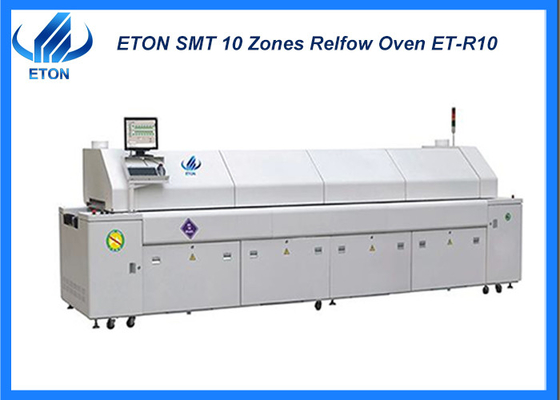

PCB Size 50-700mm Heating Reflow Oven Machine 10 hot air circulation heating zones

PCB size 50-700mm heating reflow oven machine

Machine main features

1.The temperature difference it is extremely small between BGA bottom and PCB board, which is most in line with the strict requirements of lead-free process, especially for lead-free products with difficult soldering requirements.

2. Up and down independent heating modules, independent hot air circulation, double welding zone or three welding zone settings.

3. Due to the modular design of each temperature zone, high temperature resistant long-axis hot air motor and high thermal energy nickel-chromium heating wire. It takes 20 minutes from room temperature to constant temperature.

4. Drawer-type heating component structure: This structure is very convenient and quick to maintain, and complete replacement work can be realized in 15 minutes. The traditional heating rack takes 2 hours at the fastest. (Traditional heating components need to be removed for maintenance, such as mesh belts, guide rails, etc. It will not only delay time, but also cause damage to the machine.)

Reliable and stable transmission system

1. Symmetrical double-slot guide rail, high temperature resistance, no deformation, low heat absorption. Standard chain, net chain synchronous and parallel transportation, optional dual-rail transportation system or central support system.

2. The width adjustment adopts a three-stage synchronous width adjustment structure, and the two ends are equipped with automatic thermal expansion extension devices of the guide rails, which effectively ensure the parallelism of the guide rails, prevent the occurrence of board falling and jamming, free of cleaning, and easy to adjust.

3. The computer-controlled automatic refueling system can automatically refuel according to the transportation speed and machine status, and the flow rate is adjustable.

4. The automatic width adjustment system adopts closed-loop PID control, which can automatically adjust to the required width according to the parameters input by the computer, and the accuracy can reach 0.2mm.

5. The UPS power-off protection function ensures that the PCB board can output normally after a sudden power-off without damage.

Machine main parameter

SMT Line solution

Market

Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:

SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.

Packages

Our package step is follow the blowing:

STEP 1: Film packaging to prevent the dust and water;

STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;

STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;

STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.

Delivery: by sea, air, land transport.

FAQ

Q. Can you accept D/P or D/A as the payment term?

A. For our regular payment terms, we usually use T/T.

Q. How can I contact you to buy the goods in an efficient way?

A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.

Q. How can I look around your industrial park if I am on aboard?

A. If you have Chinese agent we can make an appointment to show you the environment, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.

Contact me:

Whatsapp/Wechat: +8613632769526

Email: Noah@eton-mounter.com
