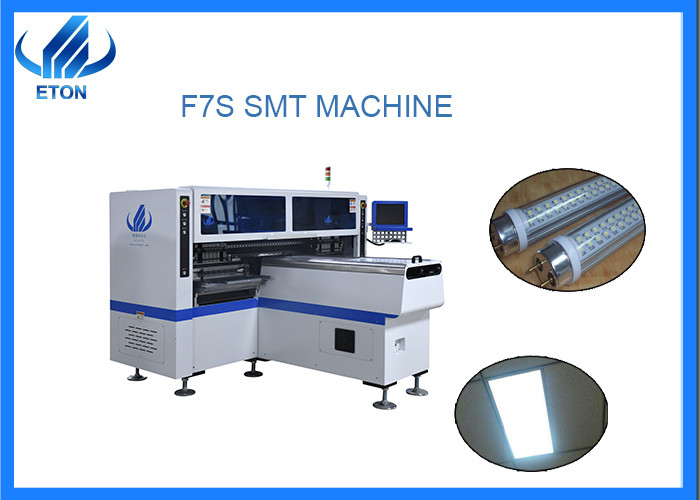

1.2m tube/Panel making mounter HT-F7S for 1200*330mm PCB SMT placement machine
Features
Parameter
Model | HT-F7S |
Dimension | |
Length | 2700mm |
Width | 2300mm |
Height | 1550mm |
Total Weight | 1700kg |
PCB | |
PCB Length Width | Max:1200*330mm Min:100*100mm |
PCB Thickness | 0.5-5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting Mode | Group picking and Group placing |
O.S. | |
System | Windows7 |
Software | R&D independently |
Display | Touch screen monitor |
Input Device | Keyboard, Mouse |
Vision System | |
No. of Camera | 5 sets ( Digital camera) |
Vision alignment, MARK correction | |
Repeat Mounting Precision | ±0.02mm(Repeat precision) |
Mounting Height | ≦5mm |
Mounting Speed | 150000~180000 CPH |
Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
Components Space | 0.5mm |
Power | 380AC 50 HZ |
Power Consumption | 6kw |
Operating Environment | 23℃±3℃ |
Conveyor Transmission | Max Length :1200 mm |
Transmission Speed | >500mm/sec |
Transmission Direction | Single(left→ right or right→ left) |
Transmission Mode | Online drive |
Positioning way | Optical |
Air supply | 0.4-0.6mpa (4-6kgf/cm²) 150N/min |
Electrical control | Independent research and development by ETON |
Motion control card module 1 set | Independent research and development by ETON |
X,Y,Z Axis Drive way | High-end magnetic linear motor+ Servo motor |
Feeding System | |
No. of Feeders Station | 68 PCS |
No. of head | 34 PCS |
Feeding way |
Electric feeder with double motor |
LED Tube light production craft Introduction
Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.
Pick and place machine: Mount the electronic component at the specified position on the PCB.Reflow oven: Melt the solder paste and fix it to the mounting element.
Single conveyor: Inspect the quality of assembly and welding to cushion the production line.
Application:
HT-F7S also can mount some complex components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers etc.
Production: LED tube,LED panel light,flexible strip light,display,etc.
