| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter | Application: | SMT Mounting Shooter Machine,SMT Production Line |
| Condition: | 100% Original,Brand-new | Mounting Speed: | 180000 CPH |
| Type: | Automatic | Usage: | SMT Mounting Machine,LED |
| Feeders: | 68pcs | ||
| High Light: | SMT LED Tube Light Making Machine,LED Tube Light SMT Mounter,SMT Mounter 180000 CPH |
||

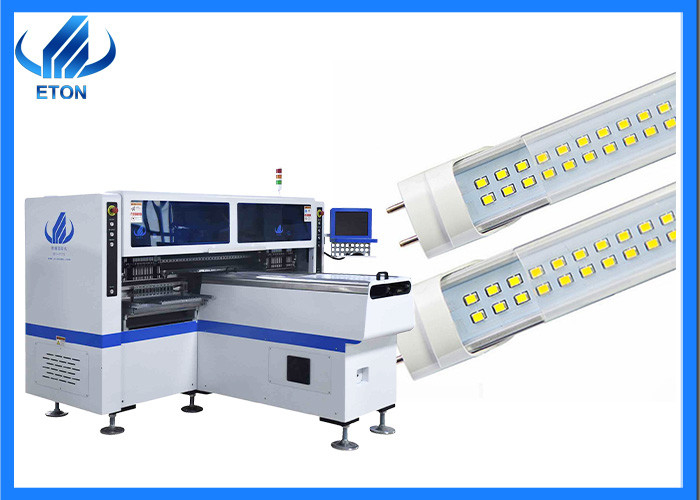

T5/T8/T10 led tube light making mounter 180000CPH in production line
Parameter
| Model | HT-F7S |
| Dimension | |
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB | |
| PCB Length Width | Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and Group placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 5 sets ( Digital camera) |
| Vision alignment, MARK correction | |
| Repeat Mounting Precision | ±0.02mm(Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 150000~180000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor Transmission | Max Length :1200 mm |
| Transmission Speed | >500mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Positioning way | Optical |
| Air supply | 0.4-0.6mpa (4-6kgf/cm²) 150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ Servo motor |
| Feeding System | |
| No. of Feeders Station | 68 PCS |
| No. of head | 34 PCS |
| Feeding way |
Electric feeder with double motor |

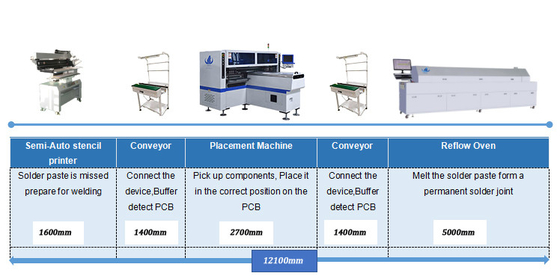

LED Tube light production craft Introduction
Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.
Pick and place machine: Mount the electronic component at the specified position on the PCB.Reflow oven: Melt the solder paste and fix it to the mounting element.
Single conveyor: Inspect the quality of assembly and welding to cushion the production line.
Certification
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
Clients:
ETON as the leading manufacturer of global photo electronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.Take India as an example,We have many big clients in India, Such as RK,SURYA,Fiem,Calcom,POLYCRB, etc. We have sold over a hundred machines to India.
Service
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
FAQ
1. How many machines sell in India ?
A: So far, we have hundreds machine sell in India.
2. I don’t know how to operate machine and will it required experience?
A: Our machine is very easy for operate, usually several days for training is enough and not required experience. ETON engineer will teach online now and will visit your factory after corona.
3. I want to produce led bulb, do you have machine for that?
A: Yes, we could provide the whole SMT Machine for led bulb.
4. I want to produce 100 meters led strip light roll to roll, is F7S suitable ?
A: F7S suitable for one meter and half meter strip light, not suitable for 100 meters. But we have two modules suitable for Roll to roll strip light, if you want to know more details about these two modules, please contact me as soon as possible.
HT-F9 SMT PRODICTION LINE WORKSHOP
Client: Indian client
City: Delhi
Product: LED Flexible strip
The client was in other LED lights before, and then they planned to produce flexible light strips. The market prospect is very optimistic. ETON helped the client to plan the LED strip light production line, including the patch production line: semi-automatic printing machine-conveyor-high-speed pick and place machine - conveyor - reflow oven, and also planned welding machine, sub-board line, rolling machine for client 5M strip light prodcution.
The client put into production in 2021, and the production situation is very good. ETON technicians installed the machine in the client's factory, planned the wiring, tested the production, and trained the client's engineers.
The client's project was very successful, becoming one of the few manufacturer in India that can provide 5M strip light. The factory for the production of all flexible light strips is very competitive, and now is planning add a new SMT production line with ETON to expand production and LED product categories. For roll to roll strip light.
