Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Application: | SMT Production Line |
| Condition: | 100% Original,Brand-new | Weight: | 1700kg |
| Mounting Speed: | 45000 CPH | Type: | Automatic |
| Usage: | SMT Mounting Machine,LED | ||
| High Light: | SMT Mounting LED Bulb Making Machine,Electronic Feeder LED Bulb Making Machine,Electronic Feeding System SMT Machine |
||
LED bulb making machine magnetic linear motor with electronic feeder feeding system
Technical parameter

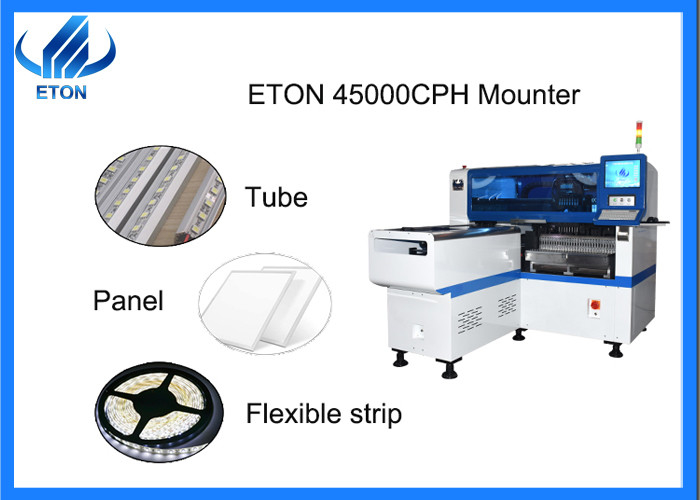

HT-E8S-1200 is a smt machine specially designed for lens production with an optimal capacity of 45000CPH.
| Model | HT-E8S-1200 |
| Dimension | 2550*1650*1550mm |
| PCB size(L* W) | Max:1200*500mm Min；100*100mm |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| No.of camera | 2setsDigital camera(Digital camera) |
| Components | LED chip,capacitors,resistors,IC,shaped components,etc. |
| No.of feeders station | 28PCS |
| No.of nozzles | 12PCS |
| Conveyor transmission | Max Length:1200mm |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
| Feeding way | Electric feeder with double motor |
Product features
Vision alignment flight identification,Mark correction.
Application
Multi-funcational pick and place machine, Wide-use for led bulb, DOB, drivers, Lens, downlights, etc., full functioning. can mount kinds of components, led chip, resistors, capacitors, IC, bridge rectifiers, inductors, terminals, diodes, transistors, large-capacitance transformers, shaped components.
Lens SMT line solution
Step one——Mounting led chip: semi auto stencil printer-conveyor-pick and place machine-conveyor-reflow oven
Step two——mounting the lens: automatic glue dispenser-conveyor-pick and place machine-conveyor-reflow oven
Here are the automatic SMT line solution layout:
Company profiles
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the world, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.
Exhibition
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries.
Besides, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Service
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
FAQ
Q: How can you make sure that the products won’t be damaged or wet?
A: We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
Q: How is the breakdown rate of machine?
A: our machine is very stable,the breakdown rate is less than 0.001.
Q: What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, printer, conveyor, pick and place machine, Loader, Unloader, etc.
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
