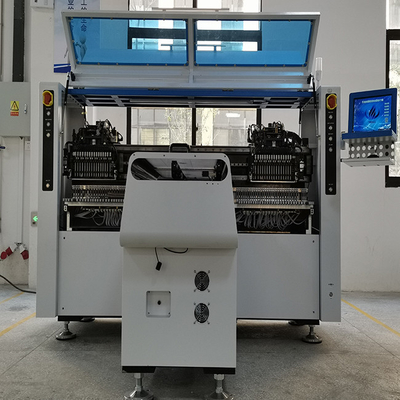

HT-F7S:SMT Machine for LED flexible strip/ led tube with Automatic feeding function
Features
Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip . Producing with 2~4 types of materials with high capacity , available for board with any proportion of LED chip and resistor .

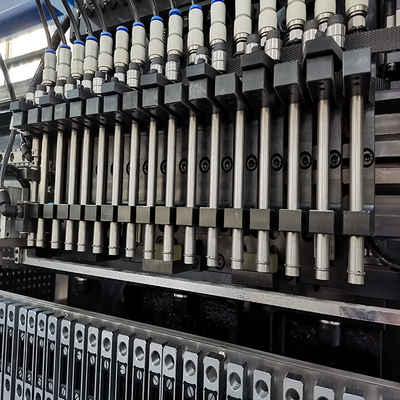

Two mounting modules ,18 nozzles for each mounting part , part A or part B can be mounted separately or synchronously .
Calibration automatically , high precision , available for RGB .
Exclusive patent technology: Group to take and group to mount.
Technical parameter
| Length |
2700mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB size(L* W) |
1200*330mm Min；100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group to take and group to mount |
| System |
Windows 7 |
| Software |
R&D Independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, mouse |
| No.of camera |
5 sets Digital camera(Digital camera) |
| Components |
LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station |
68PCS |
| No.of nozzles |
34PCS |
| Power |
380AC 50HZ |
Company profiles
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the world, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.
Exhibition
ETON is the leading manufacturer of global op to-electronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. We go to the exhibition every year. Our team is professional in the SMT field. And We go to the exhibition every year.
Market
Our products had exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Service
Engineers available to service machinery overseas.
We will have a good check and a test before shipping out.
24 hours technical support by e-mail or whatsapp.
Regular visit(one year warranty period, spare parts repair free; once or twice a year after warranty)
7*24 technical online support
Professional training of operating and maintenance
Provide free installation machine to ensure smooth production
Quality first, client-oriented, continuous improvement
We promise to allow customers to clearly know the completion of the product
