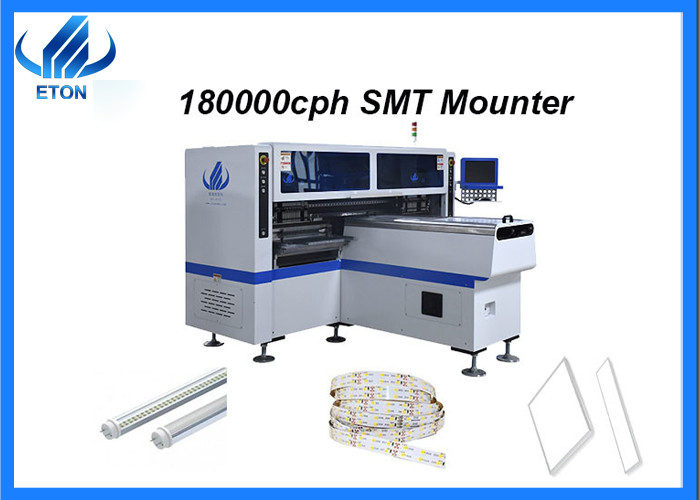

Led lighting making mounter for led tube with 180000CPH in production line
Features
Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip . Producing with 2~4 types of materials with high capacity , available for board with any proportion of LED chip and resistor .
Two mounting modules ,18 nozzles for each mounting part , part A or part B can be mounted separately or synchronously .
Calibration automatically , high precision , available for RGB .
Exclusive patent technology: Group to take and group to mount.
Technical parameter
| Length |
2700mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB size(L* W) |
1200*330mm Min；100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group to take and group to mount |
| System |
Windows 7 |
| Software |
R&D Independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, mouse |
| No.of camera |
5 sets Digital camera(Digital camera) |
| Components |
LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station |
68PCS |
| No.of nozzles |
34PCS |
| Power |
380AC 50HZ |
Our services
Before buying machine
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
After buying machine
1) 1 year free warranty
2) Visit customers regularly and gather information.
3) Provide latest information about technology and equipment.
Ship and package
1) shipping: Within 30 days after payment
2) Packaging: Standard export package or customized package
Our attitude
Not only we will provide the fastest, most stable and most complete LED pick and place machine for you, but also we can make the most suitable plan for you to save labor cost.
Certification
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
Exhibition
ETON is the leading manufacturer of global op to-electronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. We go to the exhibition every year. Our team is professional in the SMT field. And We go to the exhibition every year.
