220AC power X,Y,Z axis high-end magnetic linear motor SMT pick and place machine
Description
- Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
- Y axis double drive gantry, higher speed more stability
- The placement head adopt independent vacuum detection, improve the placement performance
- Off-line programming, save time of changeover cycle
- Equipped coordinate import function, more intelligent

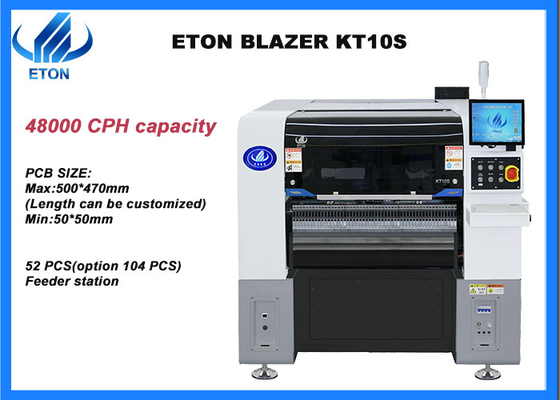

Machine main parameter
| Model |
KT10S |
| Dimension |
1460*2015*1654mm |
| Total weight |
2080kg |
| PCB size |
Max:500*470mm(Length can be customized) Min:50*50mm |
| PCB thickness |
0.5-5mm |
| Mounting precision |
CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
| Mounting speed |
48000 CPH(Optimal speed) |
| Components |
LED, capacitor, resistors, shaped components,etc |
| Power consumption |
220AC 50HZ 1.5KW |
| Feeder station |
52 PCS(option 104 PCS), IC tray option |
| No. of head |
10 PCS |
Machine application
Our Exhibitions
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
SMT Line solution
The equipment required for the semi-automatic production line includes:
- Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
- Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
- Reflow oven: melting the solder paste to make it adhere to the mounting components;
- Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
