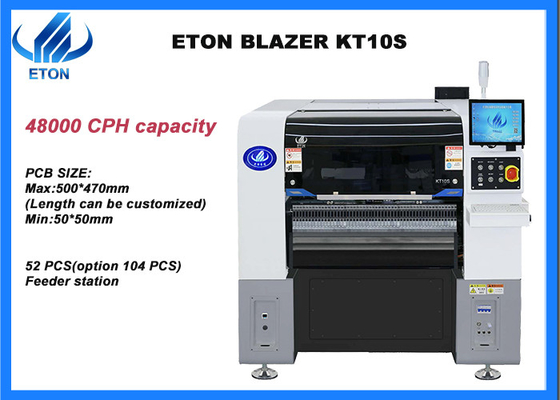

52 pcs feeder station 500*470mm max PCB size special price SMT machine
Machine main features
- Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
- Y axis double drive gantry, higher speed more stability
- The placement head adopt independent vacuum detection, improve the placement performance
- Off-line programming, save time of changeover cycle
- Equipped coordinate import function, more intelligent
Machine main parameter
| Model |
KT10S |
| Dimension |
1460*2015*1654mm |
| Total weight |
2080kg |
| PCB size |
Max:500*470mm(Length can be customized) Min:50*50mm |
| PCB thickness |
0.5-5mm |
| Mounting precision |
CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
| Mounting speed |
48000 CPH(Optimal speed) |
| Components |
LED, capacitor, resistors, shaped components,etc |
| Power consumption |
220AC 50HZ 1.5KW |
| Feeder station |
52 PCS(option 104 PCS), IC tray option |
| No. of head |
10 PCS |

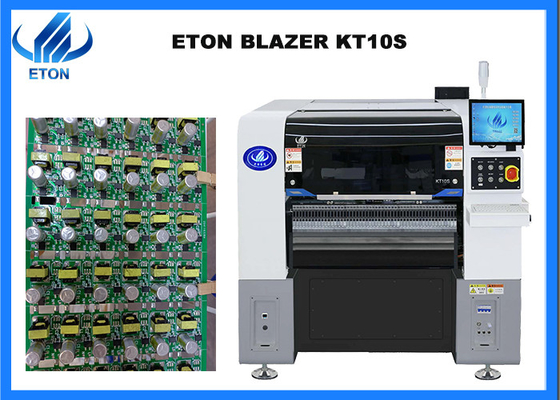

Machine application
KT10S semi - automatic production line is suitable for mounting all kinds of LED lights and circuit boards For example: LED bulb, DOB bulb Panel lamp, Down-light, Lamp tube, Street lamp, Display screen, Circuit board and Other products.
Our Exhibitions
As an experienced company of trading SMT pick and place machine with more than 30 countries and regions aboard, Eton has participated in many exhibitions of foreign countries, such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc. And also we have took part in our domestic exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
Related machine

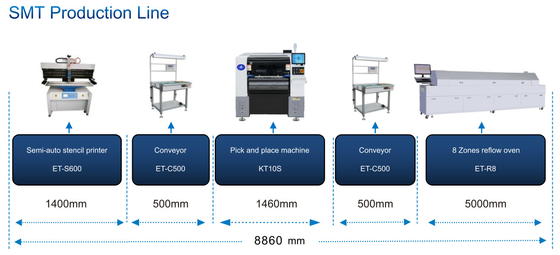

We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
Q. What is your machines quality?
A. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
