Product Details:
Payment & Shipping Terms:
|
| PCB Size: | Max Size: 500*450 Mm(Single Side) 500*300(Double Side) Min Size: 50*50 Mm | PCB Thickness: | 0.5-5 Mm |
|---|---|---|---|
| Repeat Precision: | CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) | Optimal Speed: | 98000CPH |
| Warranty: | 1 Year | Applicable Components: | Min 0201~40*40 Mm Package And IC Etc. |
| Power Supply: | 1Φ 220AC 50HZ 1.5KW | Condition: | New |
| High Light: | Double Arm SMT Machine,20 Heads SMT Machine,SMT Machine For Height 20mm |
||

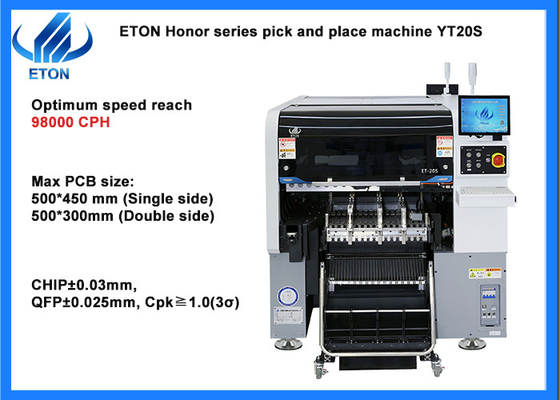

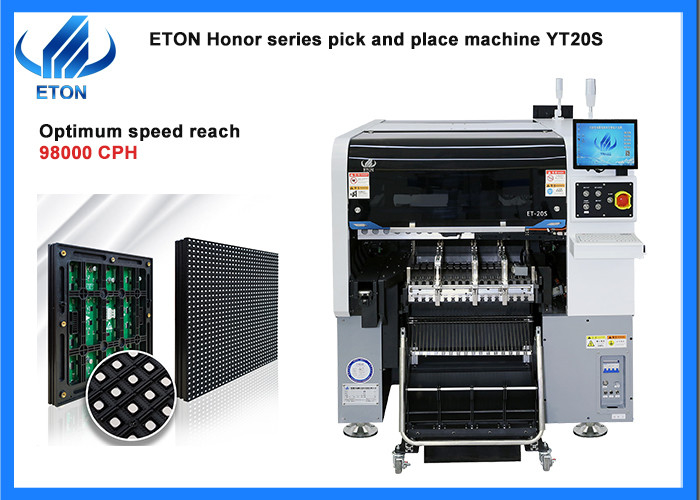

Double arm 20 heads Max components height 20mm SMT machine
Machine main features
Machine main parameter
| Model | YT-20S |
| PCB size |
Max size: 500*450 mm(Single side) 500*300(Double side) Min size: 50*50 mm |
| PCB thickness | 0.5-5 mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| Software | R&D independently |
| Production management MES system | Customized (Option) |
| Off-line programming | Available |
| Camera | Vision alignment + Mark correction |
| Repeat precision | CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
| Mounting height | 20 mm |
| Position mode | Optical |
| Optimal speed | 98000 CPH |
| Component range | Min 0201~40*40 mm package and IC etc. |
| Position mode | Optical |
| No.of heads |
Double side:20 PCS Single side:10 PCS |
| Feeding way | Intelligent double head feeder |
| X,Y,Z Axis drive way | High end magnetic linear motor |
| Power | 1Φ 220AC 50HZ 1.5KW |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Shipping and Delivery
We usually transport the goods to the port in containers and then ship them to the destination. For the transportation of machines, land transportation and air transportation are also possible.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
